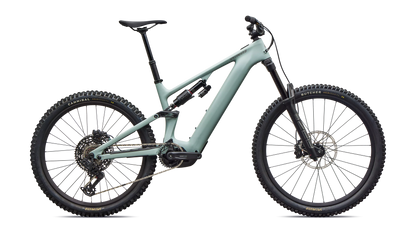

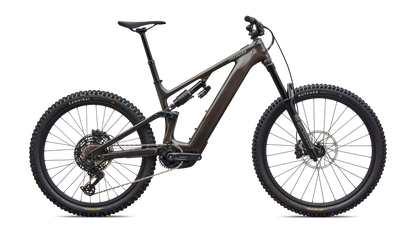

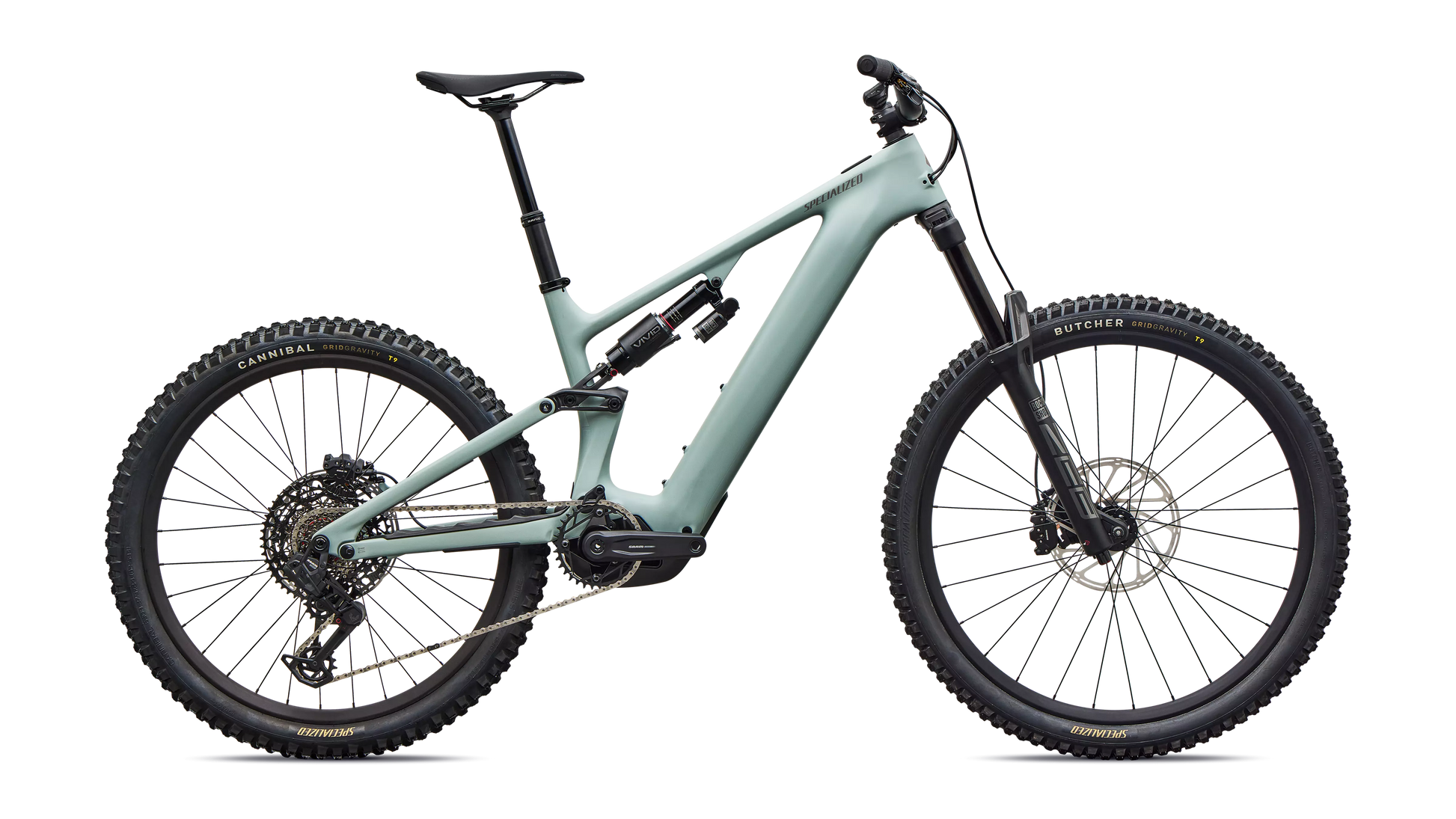

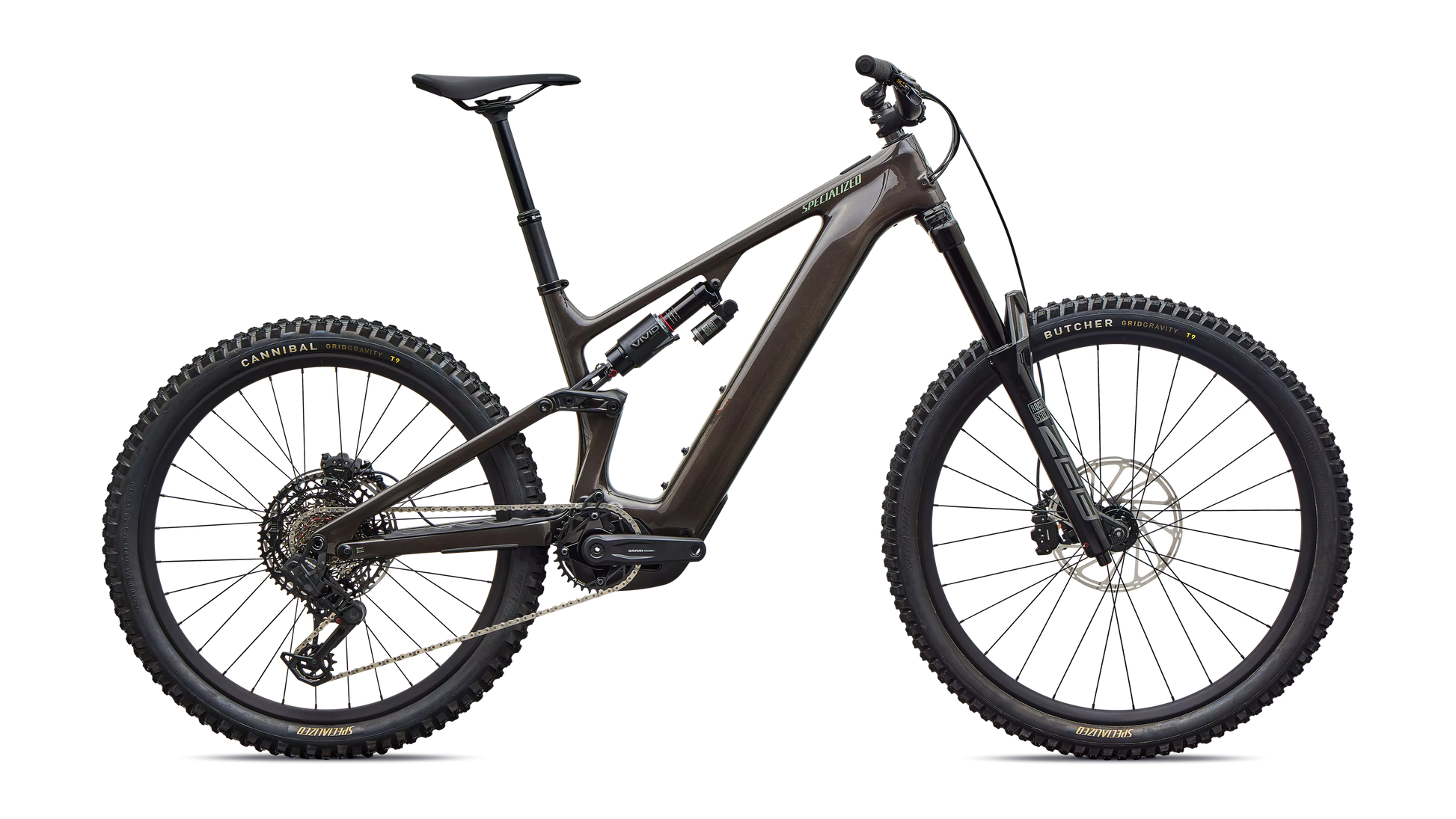

Levo 4 EVO Comp

SuperNatural Power, Capability, and Range

Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential.

This is Electric All Mountain

At a Glance

Use

Electric All Mountain

E-System

Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender

Frame

Levo EVO FACT 11m carbon frame, Geo Adj & SWAT Storage

Suspension

Fork: 180mm RockShox Zeb Select<br>Shock: Vivid Select Air Linear

Drivetrain

SRAM S1000 Eagle AXS

Wheels

Specialized Alloy Wheels

E-bike
Battery
840Wh battery
UI/Remote
Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Motor
Specialized 3.1 Motor, 105Nm torque, 810W power
Charger
Specialized 4amp charger

Frameset
Seat Binder
Alloy, 38.6mm
Frame
Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage

Suspension
Fork
All New SRAM FS ZEB Select, 29" 180mm, Linear XL spring, Delta RC damper, rebound adjust
Rear Shock
All New Vivid Select air, 230x62.5mm, Linear XL spring, RT damper w/climb switch, rebound adjust

Brakes
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor

Drivetrain
Cassette
SRAM 12-speed,10-52t
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
Shift Levers
SRAM AXS Pod Controller w/discrete clamp
Chain
SRAM GX Eagle Transmission 12-Speed Flattop Chain
Crankset
SRAM S1000 Alloy crank, ISIS interface, 155mm length
Rear Derailleur
SRAM S1000 Eagle AXS

Wheels & tires
Front Tire
Butcher, GRID Gravity, T9, TLR, 29x2.4"
Rear Tire
Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
Spokes
DT Swiss Elemental
Rims
Specialized Alloy Rims
Front Hub
Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h
Rear Hub
Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32h, HG Steel Fhb
Inner Tubes
Standard, Presta Valve

Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebars
Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
Saddle
Bridge Comp, Hollow Cr-mo rails 155/143
Grips
Specialized Trail Grips
Seatpost
Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm

Accessories
SWAT
SWAT Internal downtube storage

Product details
Product ID
294787

Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)

Weight
Weight
25.16 kg (55 lb, 7.5 oz)
Weight Size
S4
