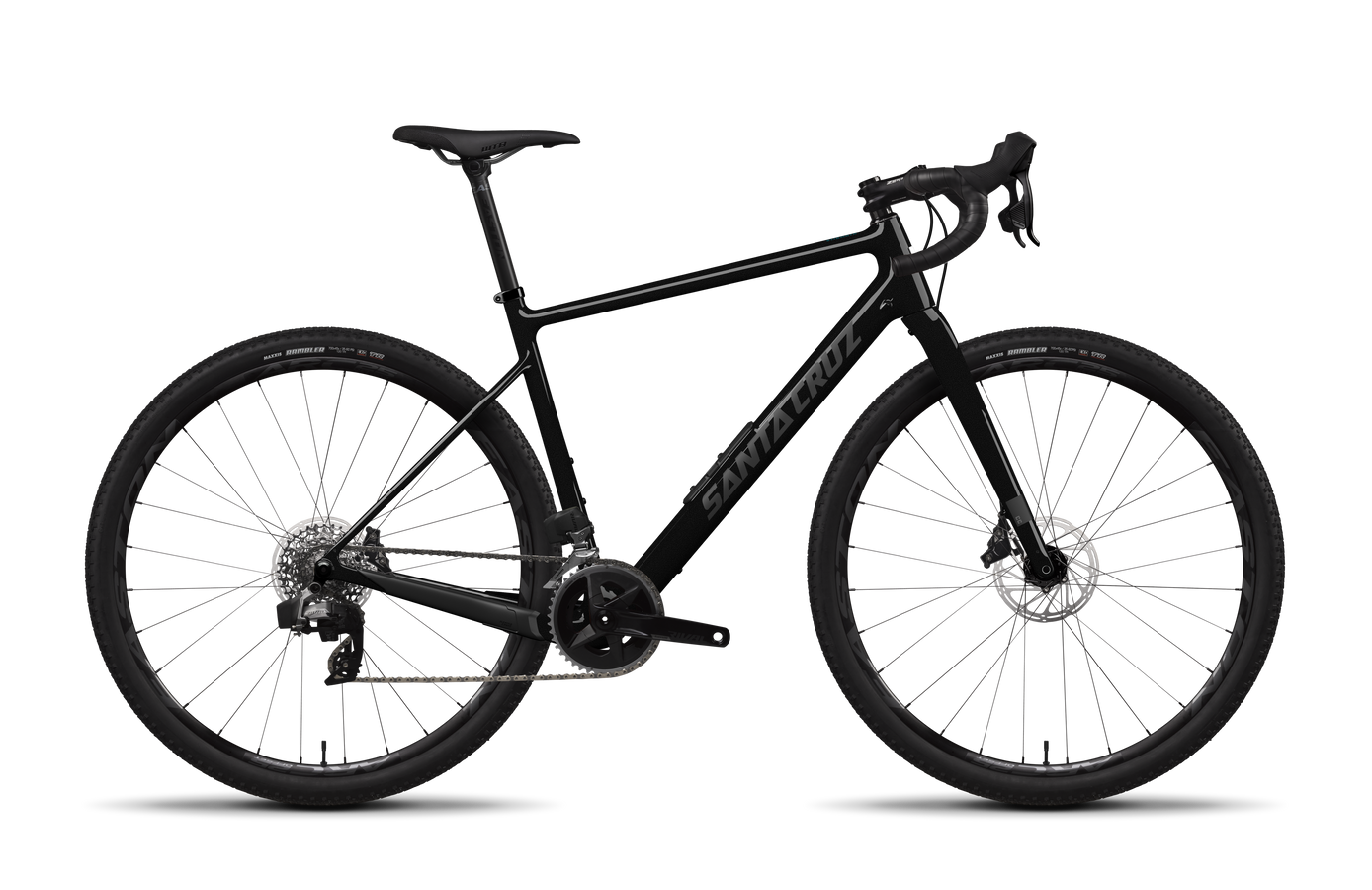

The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine. It’s designed for the rider lining up for The Big Event, escaping via the road less traveled or who can’t help themselves from finding the hardest way there. Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that’s always ready to rise to the occasion.

Frame
Material
Carbon CC
Weight
20.67 lbs / 9.38 kg
Wheel Size
700C
Suspension
Fork
Carbon
Drivetrain
Bottom Bracket
SRAM DUB 68mm Road Wide BB
Cassette
SRAM XG-1250 10-36t
Chain
SRAM Rival, 12spd
Crankset
SRAM Rival DUB Wide, 43/30
Front Derailleur
SRAM Rival eTap AXS Wide
Rear Derailleur
SRAM Rival eTap AXS, 12spd
Right Shifter
SRAM Rival eTap AXS
Brakes
Front Rotor
Avid Centerline, Centerlock, 160mm
Rear Rotor
Avid Centerline, Centerlock, 160mm
Cockpit
Grips / Bar Tape
Velo Bar Tape
Handlebars
Zipp Service Course 70 XPLR AL Bar
Headset
Cane Creek 40 IS Integrated Headset
Saddle
WTB Silverado Medium, CroMo
Seatpost
Easton EC70, 27.2, Zero Offset, 350mm
Stem
Zipp Service Course Stem, 70mm
Wheels
Front Rim
Easton ARC Offset 25 700c
Front Hub
DT Swiss 370, 12x100, Centerlock, 28h
Front Tire
Maxxis Rambler, 700x45c, DC, EXO
Rear Rim
Easton ARC Offset 25 700c
Rear Hub
DT Swiss 370, 12x142, XDr, Centerlock, 28h
Rear Tire
Maxxis Rambler, 700x45c, DC, EXO
Specs
Bottom Bracket Shell
BSA Threaded 68
Rear Brake Mount
Flatmount 160mm Direct
Fork Axle to Crown
430
Fork Compatibility
40mm
Fork Offset
45mm
Front Derailleur Mount
Braze-on w/included clamp adapter
Headset
IS 41 /IS52
Max Chainring Size
42t (1x), 50/36t (2x)
Max Tire Clearance
May vary according to tire and rim model
50mm (1x), 45mm (2x)
Rear Spacing
142mm
UDH Compatible
Yes
