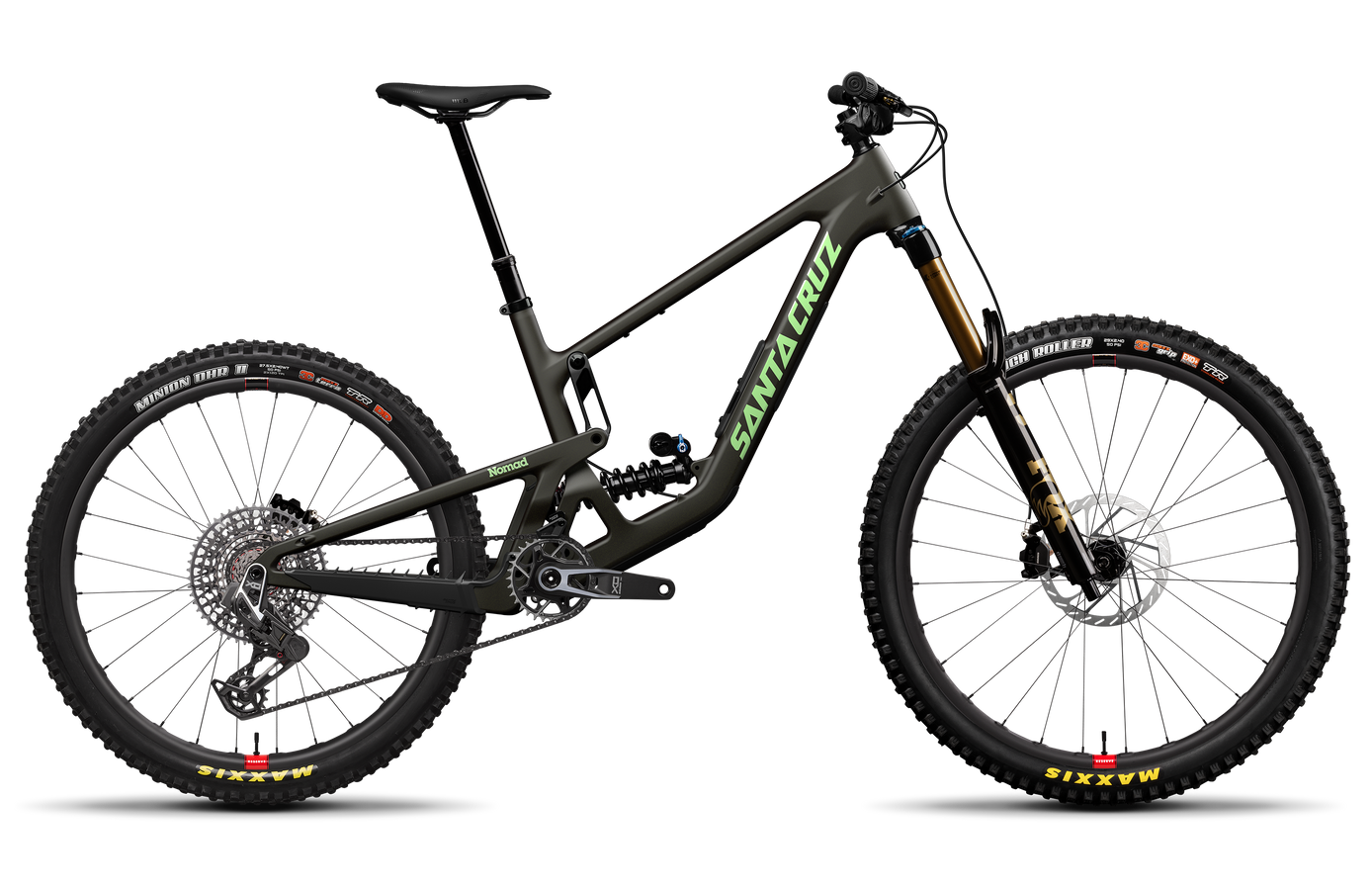

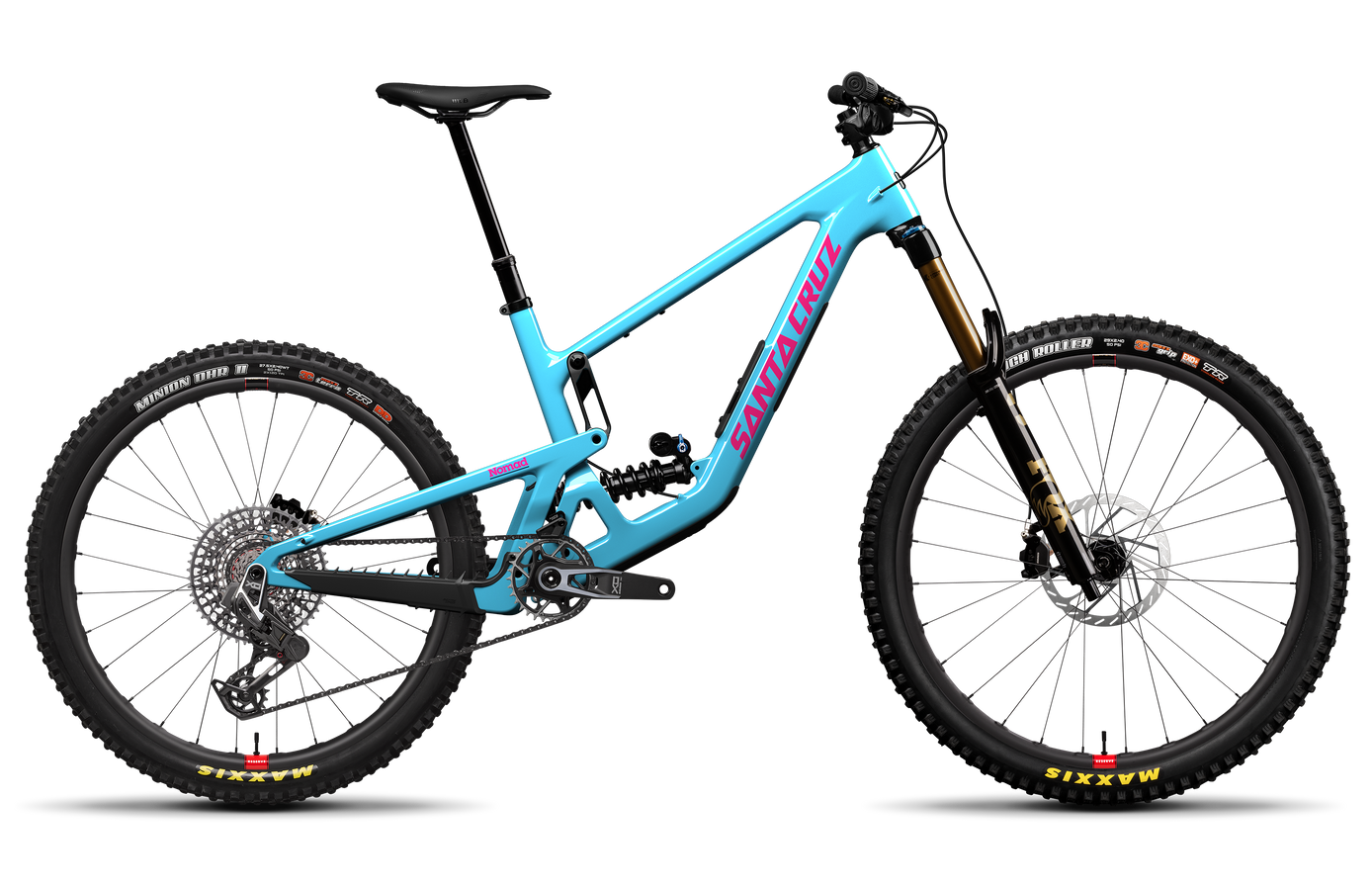

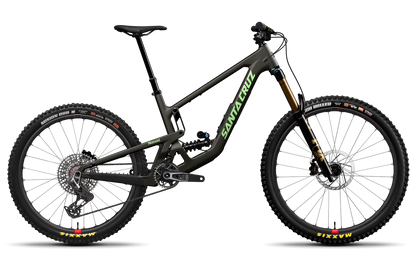

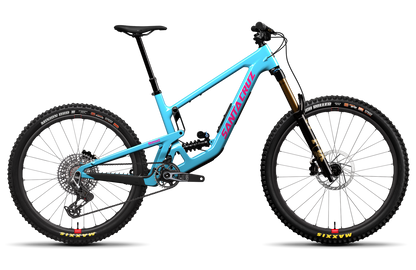

Zip it into the bag, chuck it in the van, or toss it over the tailgate—when you get to the trails, you’ll be happy you’re on a Nomad. The refined suspension offers efficient climbing, less reactivity under braking, and improves traction everywhere in between. In short, you’ll be more comfortable, more composed, and more confident no matter what the trail throws your way.

• Carbon CC Frame
• Fox 38 Float Factory Fork
• Fox DHX2 Factory
• SRAM X0 Eagle AXS T-Type Drivetrain
• Reserve 30|HD Carbon Wheels

Frame
Material
Carbon CC
Frame
Carbon CC MX 170mm Travel VPP™
Travel
170mm
Weight
33.83 lbs / 15.34 kg
Wheel Size
MX

Suspension
Fork
Fox 38 Float Factory, Grip X2, 170mm
Shock
Fox DHX2 Factory S: 400lb, M: 450lb, L: 500lb, XL-XXL: 550lb

Drivetrain
Bottom Bracket
SRAM DUB 73mm MTB Wide BB
Cassette
SRAM X0 1295 Eagle T-Type, 10-52t
Chain
SRAM X0 Eagle T-Type, Flattop, 12spd
Chainguide
OneUp Chainguide
Crankset
SRAM X0 Eagle DUB T-Type, 32t S: 165mm, M-XXL: 170mm
Rear Derailleur
SRAM X0 Eagle AXS T-Type, 12spd
Right Shifter
SRAM AXS Pod Controller Rocker

Brakes
Brakes
SRAM Maven Silver
Front Rotor
SRAM HS2 200mm
Rear Rotor
SRAM HS2 200mm

Cockpit
Grips / Bar Tape
Santa Cruz Bicycles House Grips
Handlebars
OneUp Carbon Bar, 35mm S: 760mm, 20mm Rise, M-XXL: 800mm, 35mm Rise
Headset
Cane Creek 50 IS Integrated Headset
Saddle
WTB Silverado Medium Fusion, CroMo SL
Seatpost
OneUp Dropper Post, 31.6 S: 150mm, M: 180mm, L-XL: 210mm, XXL: 240mm
Stem
OneUp Enduro Stem All Sizes: 42mm

Wheels
Front Rim
Reserve 30|HD Carbon
Front Hub
DT Swiss 350, 15x110, 6-Bolt, 28h
Front Tire
Maxxis High Roller, 29"x2.4", 3C MaxxGrip, EXO+
Rear Rim
Reserve 30|HD Carbon
Rear Hub
DT Swiss 350 DEG DF, 12x148, XD, 6-Bolt, 28h
Rear Tire
Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down
Valves
Reserve Fillmore Valves

Specs
Headset
Integrated (IS41/52)
Fork Axle to Crown
588mm
Fork Offset
44
Fork Compatibility
170-180mm
Suspension System
VPP™
Rear Travel
170mm
Recommended Sag
30%
Shock Length
230mm
Shock Stroke
65mm
Shock Bushing Size Front
30x8
Shock Bushing Size Rear
30x8
Bottom Bracket Shell
73mm Threaded
Chainline
55mm
Max Chainring Size
36t
Chainguide Standard
Integrated upper guide+2-bolt ISCG 05 bash mount
UDH Compatible
Yes
Rear Spacing
148mm
Rear Brake Mount
Postmount 200mm
Max Rotor Size
223mm
Seat Post Diameter
31.6
Seat Clamp Diameter
36.4
Water Bottle Mounts
1
Downtube Storage
Glovebox
