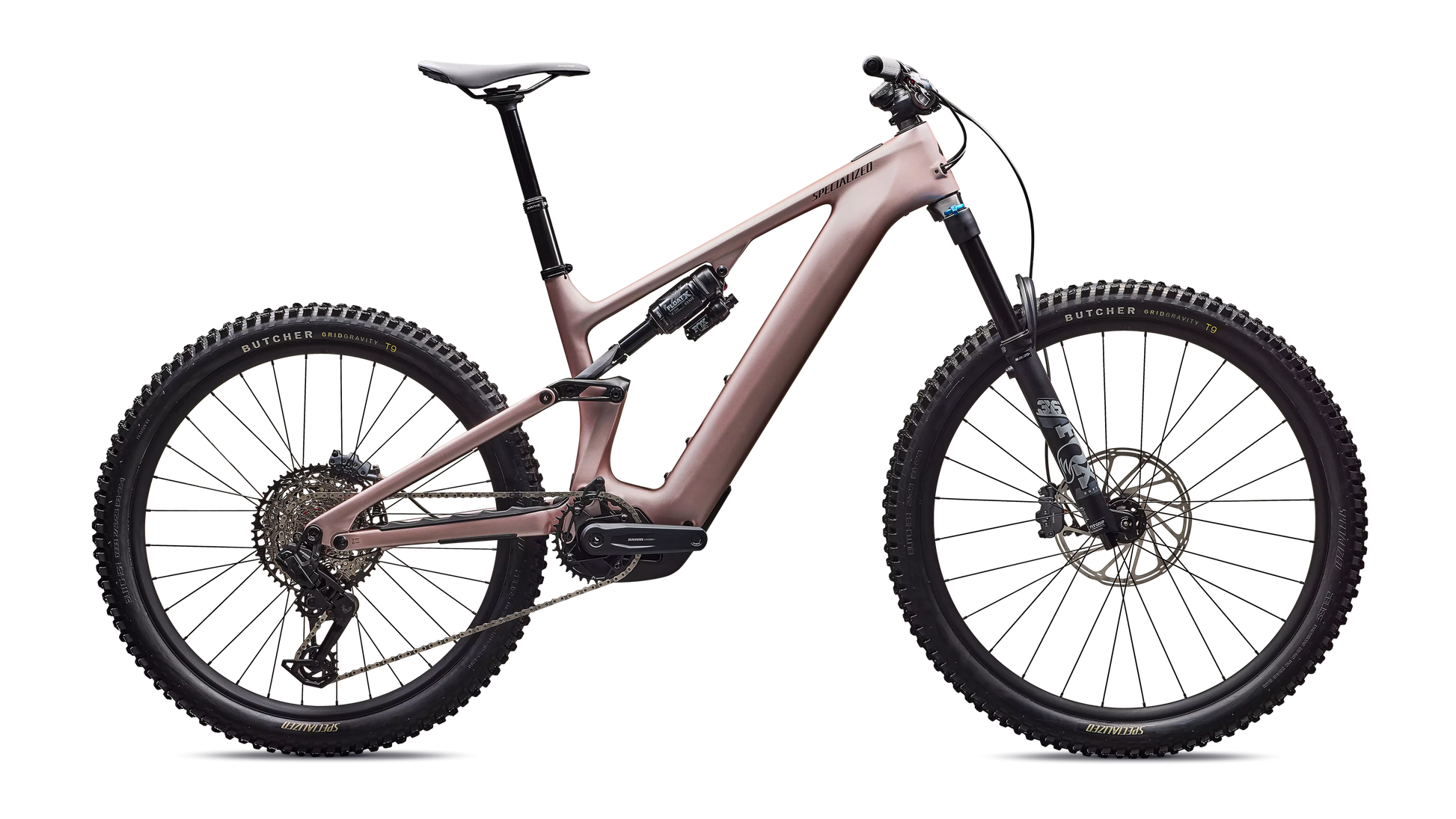

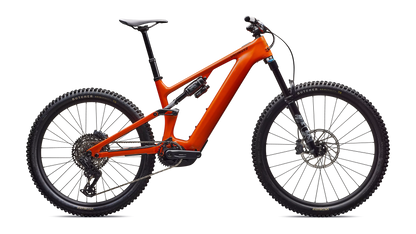

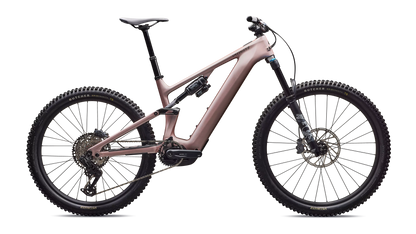

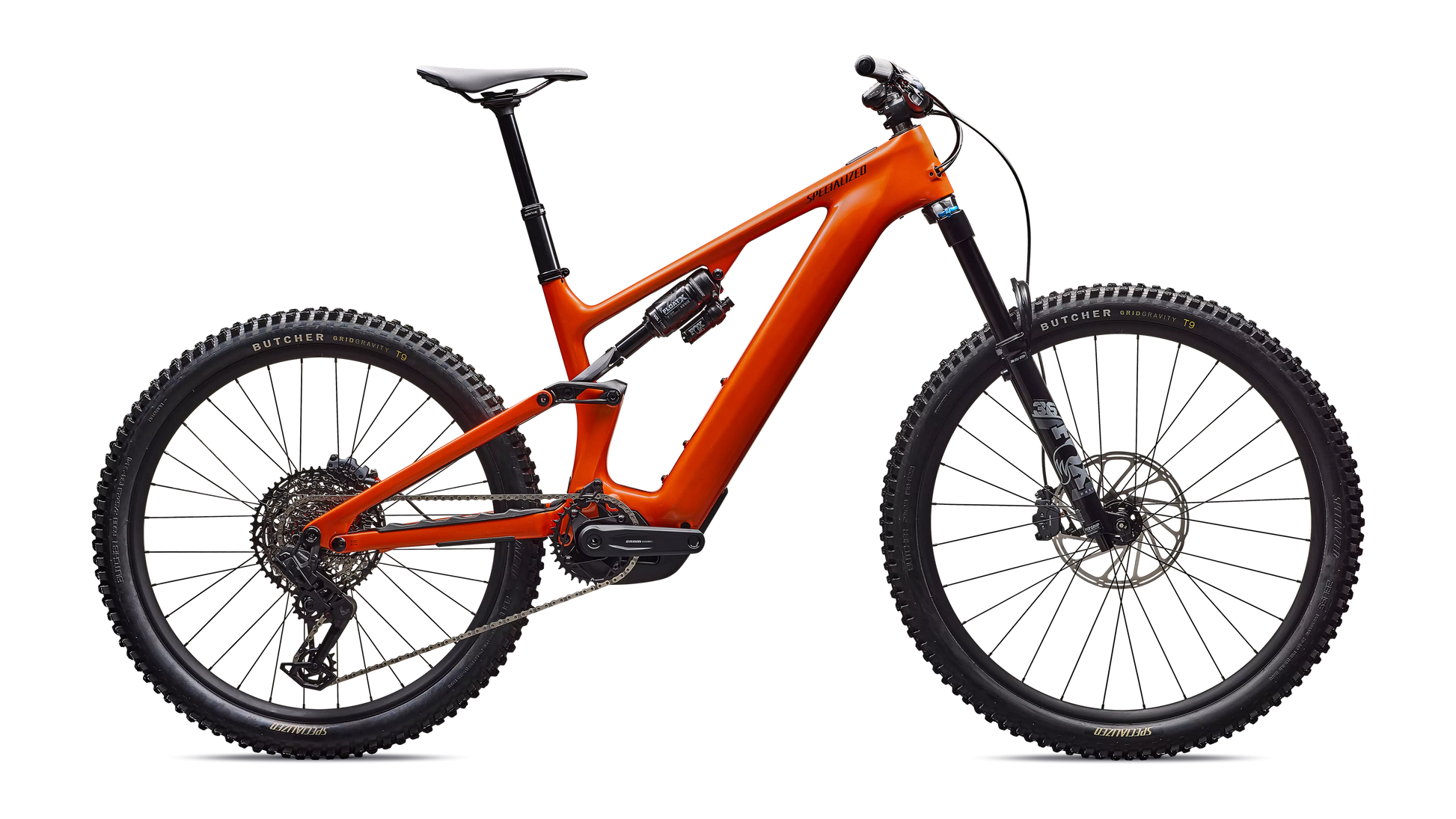

Turbo Levo 4, Where Super Meets Natural

SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

At a Glance
Use
Full Power E-MTB Trail

E-System
Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range

Frame
FACT 11m Carbon, Geo Adj & SWAT Storage

Suspension
Front: 160mm FOX FLOAT 36 Rhythm GRIP
Rear: 150mm GENIE - FOX FLOAT X Performance

Drivetrain
SRAM S1000 Eagle T-Type AXS

Wheels
Specialized Alloy Rims / Bear Pawls hubs

E-bike
UI/Remote
All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
Motor
Specialized 3.1 Motor, 105Nm torque, 810W power
Charger
Specialized 4amp charger
Battery
840Wh battery

Frameset
Seat Binder
Alloy, 38.6mm
Frame
All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm

Suspension
Fork
FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 160mm of travel
Rear Shock
FOX FLOAT X Performance with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment

Brakes
Front Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Rotor
Rear Brake
SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm Rotor

Drivetrain
Chainrings
SRAM T-type ring, 34T, 104 BCD, steel
Shift Levers
SRAM AXS POD Controller
Chain
SRAM GX Eagle Transmission Flattop Chain
Rear Derailleur
SRAM S1000 Eagle Transmission, Wired SRAM AXS battery (powers AXS rear derailleur with integrated hot shoe directly off the Levo 4 main battery).
Crankset
SRAM S1000 Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm
Cassette
SRAM XG-1270 Transmission Cassette, 12-speed,10-52t

Wheels & tires
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Spokes
DT Swiss Industry
Front Hub
Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28H
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
Specialized 29F/27.5R, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard, Presta valve

Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebars
Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 30mm rise, 780mm width, S3-S5: 40mm rise 800mm width
Saddle
Bridge Comp, Hollow Cr-mo rails
Grips
Specialized Trail Grips
SeatPost
Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm

Accessories
SWAT
SWAT internal downtube storage

Product details
Product ID
218708

Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. <br>For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries)

Weight
Weight
24.41 kg (53 lb, 13.0 oz)
Weight Size
S4
