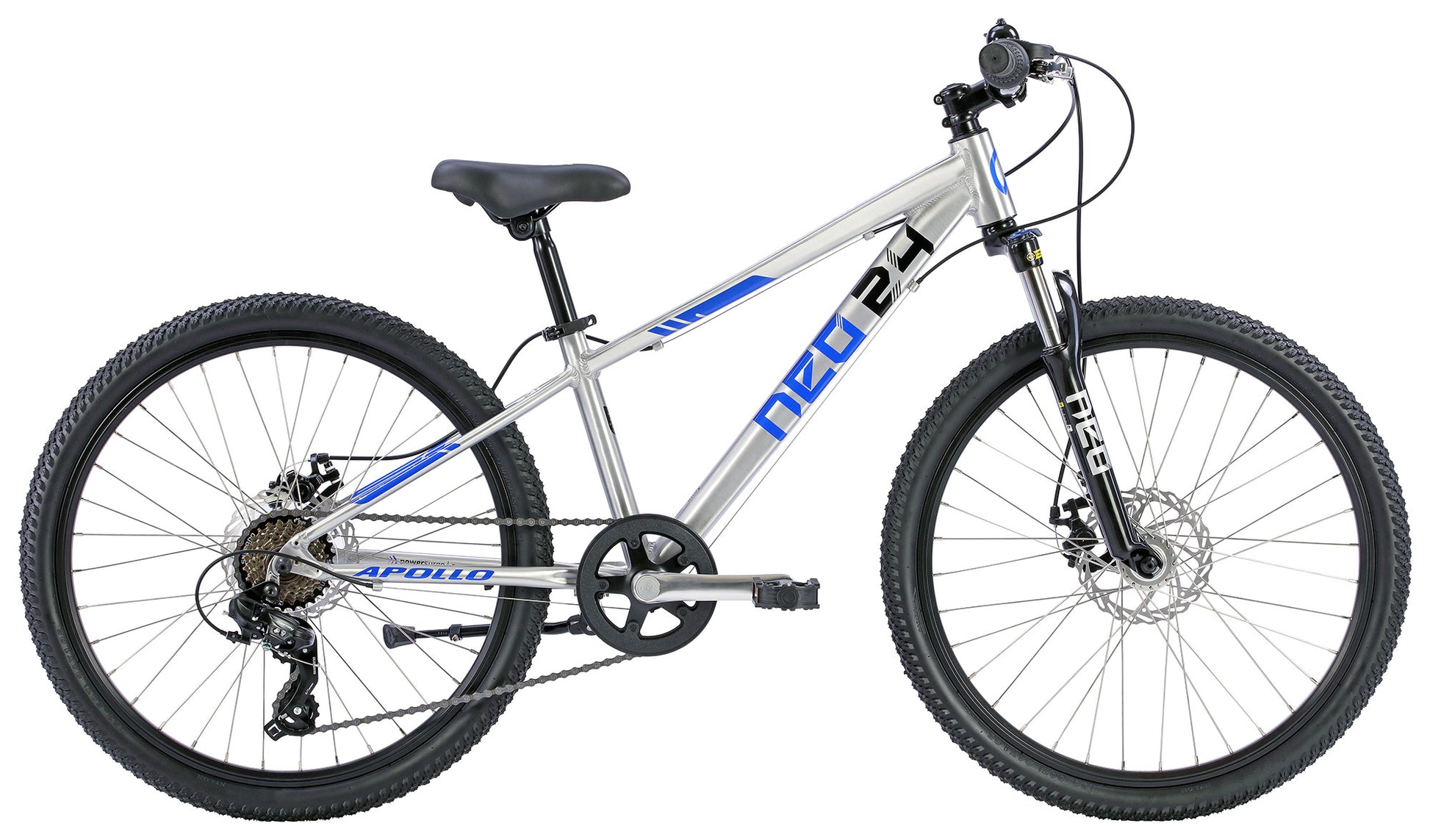

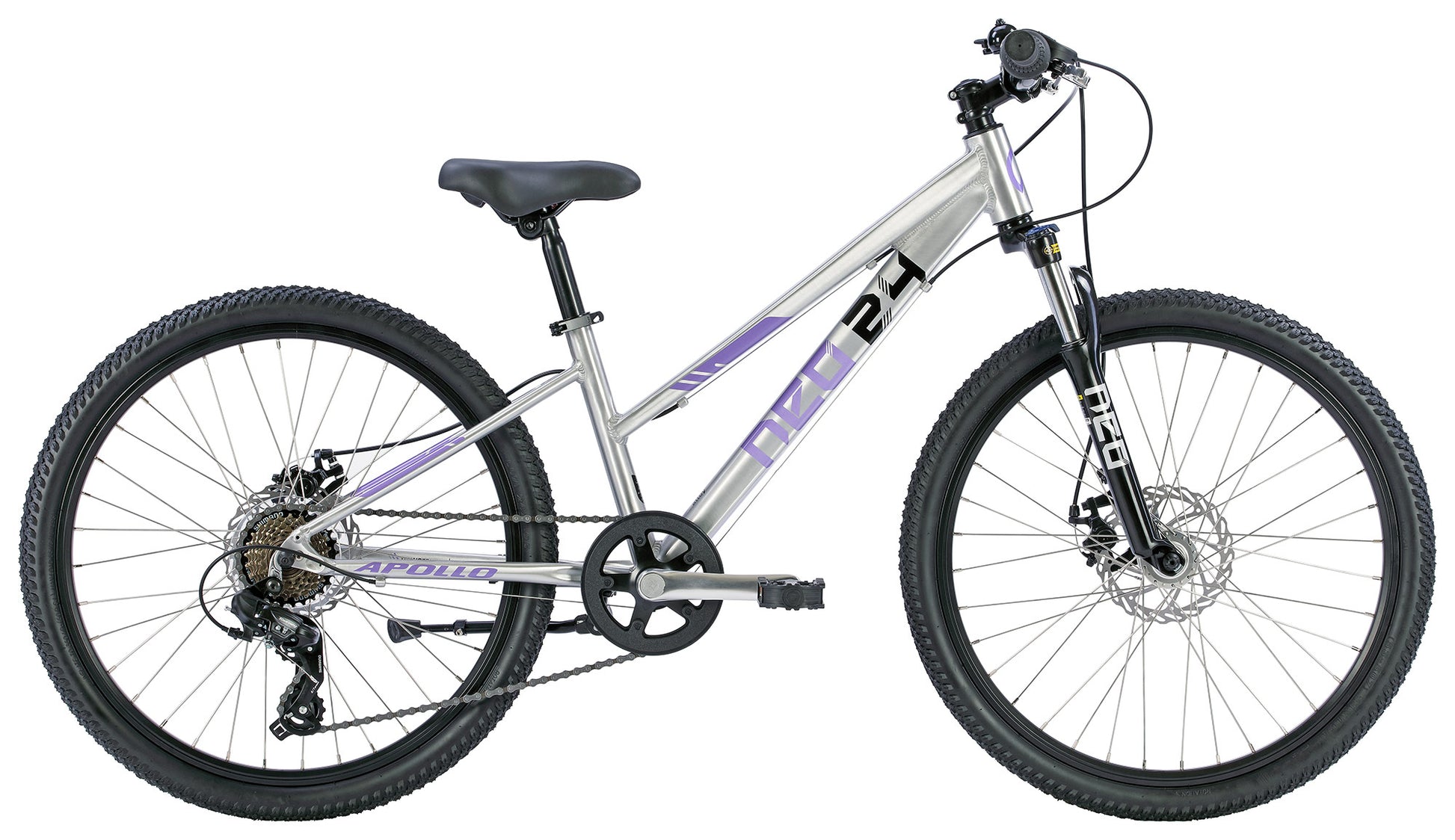

Neo Disc+ 24''
Neo Disc+ 24''
Our 24" models are built for kids who are more adventurous and are keen to take their skills to the next level. Choose from our versatile Neo+ 24 7s, offering 7 speed gearing to tackle bigger hills, the Neo+ 24 3i which has a low-maintenance 3 speed internal hub, or the new Neo Disc+ 24 which is perfect for kids who want to take their riding off the pavement and into the dirt! Learn all about our Neo Disc+ range here.
AGE RANGE: 7 - 10+ years
HEIGHT RANGE: 130 - 160 cm
Contact Us
SKU:22535
Couldn't load pickup availability
Full Description
Full Description
HIGHLIGHTS
New model featuring our junior-specific frame with light weight oversized thin-wall alloy, hydroformed tubes and new streamline stays.
Suspension fork and knobby MTB tyres for dirt riding.
Full alloy child-specific short reach brake levers, combined with powerful disc brakes.
Low standover frame, allowing easy operation, boosting rider confidence and safety.
Light weight alloy hubs, rims, handlebars and stem, which reduces the overall weight of the bicycle.
Super comfortable junior-specific saddle and grips, for ultimate riding comfort.
Light weight alloy crank set with child-specific easy pedalling gearing.
Shimano 7 speed shifting for reliable shifting performance.
Specifications
Specifications
FRAME
Lightweight, easy to ride alloy kids frame, with low stand over height, new hydroformed tubes andstreamline stays
FORK
24" ZOOM-525AMS alloy suspension fork, 60mm travel, w/ lockout
HEADSET
Semi-sealed integrated 1-1/8" A-head
HANDLEBAR
Lightweight alloy low riser 560mm
GRIP
Kraton grips
HEADSTEM
Alloy A-head 4 bolt stem with Rise: 10° Bore: 25.4mm, L: 60mm.
CRANKSET
Alloy oversize 3 piece crank with 36T chainwheel and double chainguard
BOTTOM BRACKET
Nutted bottom bracket
PEDALS
High impact plastic
FRONT DERAILLEUR
N/A
REAR DERAILLEUR
Shimano TX-35
SHIFT LEVERS
Shimano Revoshift 7 speed rear
CASSETTE
Shimano MF TZ21 14-28T 7 speed freewheel
CHAIN
KMC Z-51
BRAKES
JAK-5 mechanical disc brake, w/ 160mm rotors, short reach alloy lever for kids
WHEELS
24" lightweight alloy 32 hole double wall rims,
stainless steel spokes, and alloy disc brake hubs with nutted axles
TYRES
24” x 1.95 micro knobby
SADDLE
Neo Comfortech youth saddle
SEATPOST / CLAMP
27.2mm alloy micro adjust with quick release clamp
EXTRAS
Alloy kickstand
