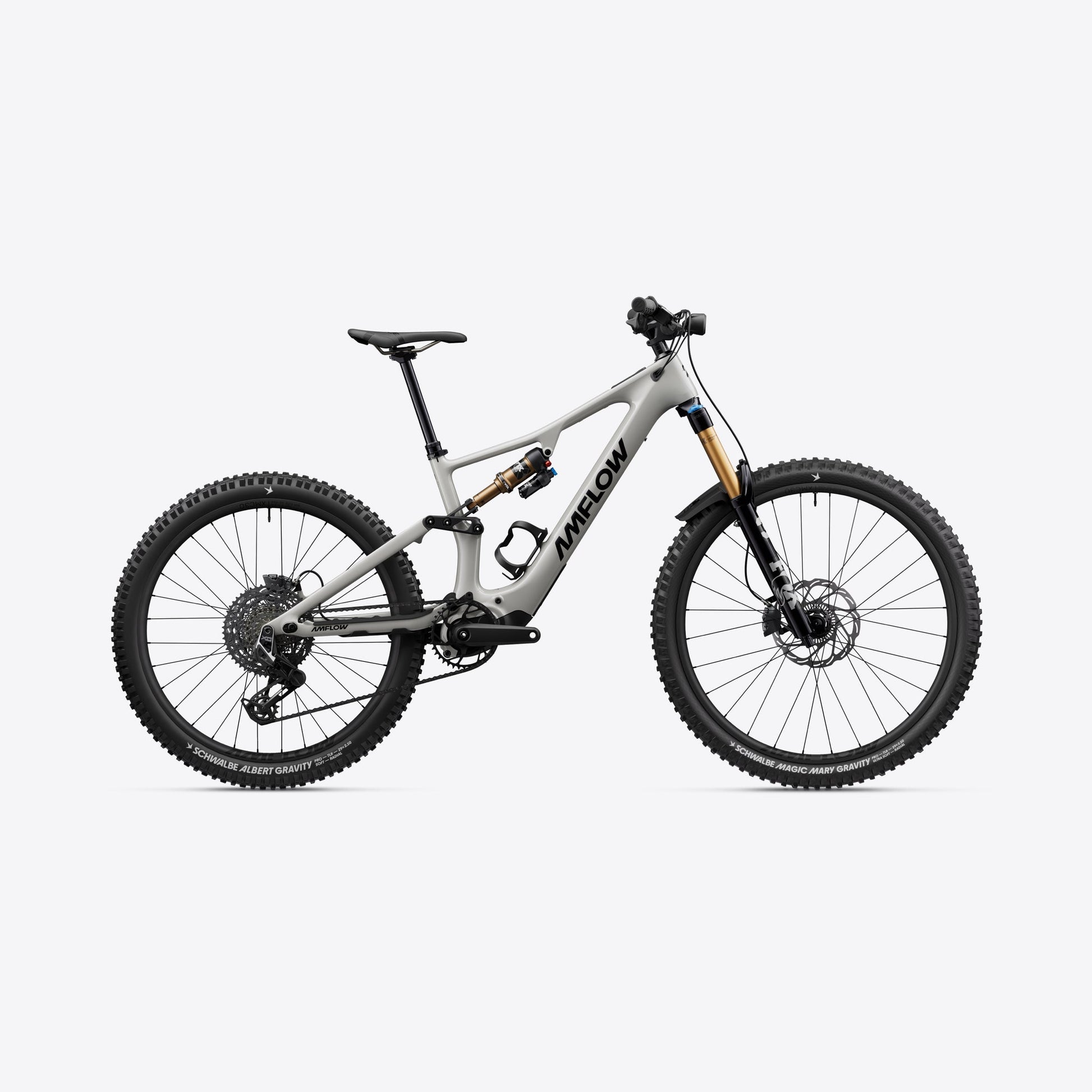

Slim and light, yet remarkably powerful. An ultra-light carbon fiber frame brings the bike down to 20.6kg for confident, effortless control.

Available in Moonstone Grey. A futuristic design, brought to life by shifting light and shadow.

Featuring a compact, streamlined design with a total weight of approximately 2.4kg , it is lightweight without compromising on a powerful performance.

Whisper-Quiet, Immersive Riding

Innovative compound planetary gears and a helical gear design reduce operating noise to as low as 45dBA  for a quieter, more immersive ride.

Charge Fast, Ride Free

A 700Wh high-capacity battery paired with 3x super-fast charging supports all-day epic rides and helps eliminates range anxiety.

Compact, More Capable

At 2.59kg  the Avinox M2S Drive Unit boosts power density by 45%  and torque density by 21.6% compared to the previous generation.

Smart Offline Navigation

The Avinox Ride app imports third-party routes and turns ride history into route files for one-click ride data synchronization.

Frame Model Amflow PX Carbon Pro Frame
Color Moonstone Gray
Geometry 40 adjustable geometry configurations
Wheel Compatibility Compatible with 27.5″ and 29″ rear wheels
E-Bike System Drive Unit Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m
Display Avinox Screen: 2-inch OLED Control Display
Battery Avinox Integrated Battery: 700Wh
Controllers Avinox Wireless Controllers (Right & Left)
Charger Avinox Fast Charger: 12A / 508W
Rear Shock Model FOX Float X Factory (MY 2027)
Specs 2-position lever, custom tune, LSC & LSR adjustment, 210×55mm, air shock
Fork Model FOX 36 Factory (MY 2027)
Specs 160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset
Drivetrain Rear Derailleur SRAM X0 Eagle Transmission Derailleur
Chainring SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers SRAM AXS Pod Rocker Controller
Cassette SRAM XS-1295 Eagle Transmission Cassette 10-52T
Chain SRAM X0 Eagle Transmission Chain
Power Supply Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes System Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Rotor Magura Sensor Rotor (203mm, 2.5mm)
Wheels Model Amflow XMA-30 Mullet Version
Front Rim Carbon, 29″, 30mm inner width, 28H, tubeless ready
Rear Rim Carbon, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes SAPIM E-Light
Front Hub Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt
Rear Hub Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD
Tires Front Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
Rear Schwalbe Albert Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Handlebar Model Amflow Enduro Carbon Handlebar
Dimensions 40mm Rise, 800mm Width, 35mm Diameter
Angles 5° upsweep, 9° backsweep
Grips Model Amflow Enduro Grip 2 Lock-on Grips
Stem Length 35mm
Clamping Diameter 35mm
Saddle Model Amflow Mountain Saddle Titanium
Dropper Post Adjustment Adjustable travel: 0/5/10/15/20/25mm
M/L Frame 190mm
XL Frame 210mm
