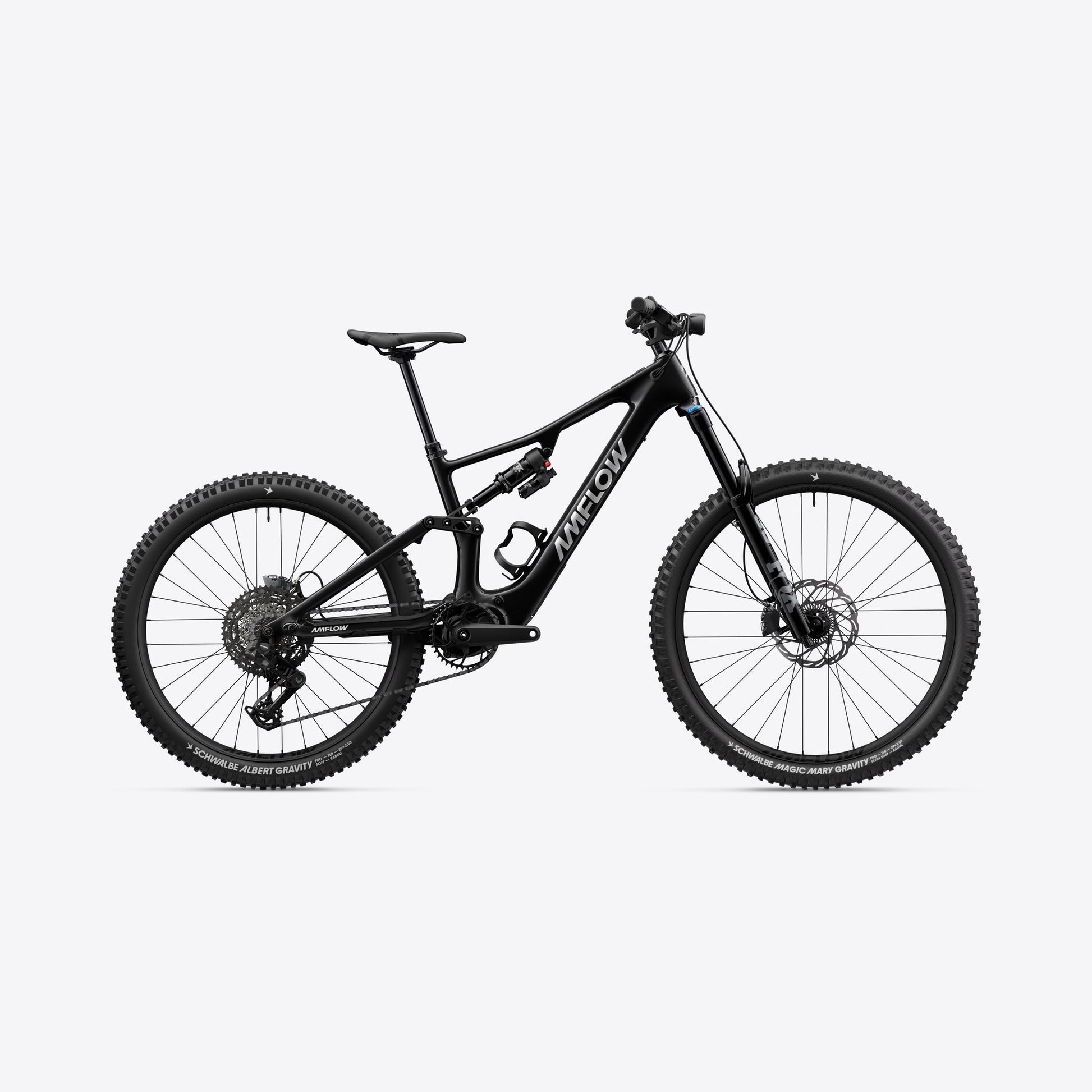

Slim and light, yet remarkably powerful. An ultra-light carbon fiber frame brings the bike down to 20.6kg for confident, effortless control.

Available in Phantom Black. A futuristic design, brought to life by shifting light and shadow.

Featuring a compact, streamlined design with a total weight of approximately 2.4kg , it is lightweight without compromising on a powerful performance.

Whisper-Quiet, Immersive Riding

Innovative compound planetary gears and helical gear design suppress the operating sound of the Avinox M2S Drive Unit to as low as 45dBA. On descents, rattling is kept to a minimum, so the sound of the wind and trail feedback become clearer, allowing you to focus on your rhythm and handling, fully immersing yourself in the joy of riding.

Charge Fast, Ride Free

A 700Wh high-capacity battery paired with 3x super-fast charging supports all-day epic rides and helps eliminates range anxiety.

Compact, More Capable

At 2.59kg  the Avinox M2S Drive Unit boosts power density by 45%  and torque density by 21.6% compared to the previous generation.

Smart Offline Navigation

The Avinox Ride app imports third-party routes and turns ride history into route files for one-click ride data synchronization.

Frame Model Amflow PX Carbon Frame
Color Phantom Black
Geometry 40 adjustable geometry configurations
Wheel Compatibility Compatible with 27.5″ and 29″ rear wheels
E-Bike System Drive Unit Avinox M2S Drive Unit: Nominal 130N·m, Peak 150N·m
Display Avinox Screen: 2-inch OLED Control Display
Battery Avinox Integrated Battery: 700Wh
Controllers Avinox Wireless Controllers (Right & Left)
Charger Avinox Fast Charger: 12A / 508W
Rear Shock Model FOX Float X Performance (MY 2027)
Specs 2-position lever, custom tune, LSR adjustment, 210×55mm, air shock
Fork Model FOX 36 Performance (MY 2027)
Specs 160mm travel, GRIP damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
Drivetrain Rear Derailleur SRAM S1000 Eagle Transmission Derailleur
Chainring SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers SRAM AXS Pod Controller
Cassette SRAM XS-1270 Eagle Transmission Cassette 10-52T
Chain SRAM Eagle 70 Transmission Flattop Chain
Power Supply Avinox M2 Series Electronic Rear Derailleur Power Cable
Crankset Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes System Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Rotor Magura Sensor Rotor (203mm, 2.5mm)
Wheels Model Amflow XMA-30 Mullet Version
Front Rim Alloy, 29″, 30mm inner width, 32H, tubeless ready
Rear Rim Alloy, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes SAPIM E-Light
Front Hub Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Rear Hub Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
Tires Front Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready
Rear Schwalbe Albert Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready
Handlebar Model Amflow Enduro Alloy Handlebar
Dimensions 40mm Rise, 800mm Width, 35mm Diameter
Angles 5° upsweep, 9° backsweep
Grips Model Amflow Enduro Grip 2 Lock-on Grips
Stem Length 35mm
Clamping Diameter 35mm
Saddle Model Amflow Mountain Saddle
Dropper Post Adjustment Adjustable travel: 0/5/10/15/20/25mm
M/L Frame 190mm
XL Frame 210mm
