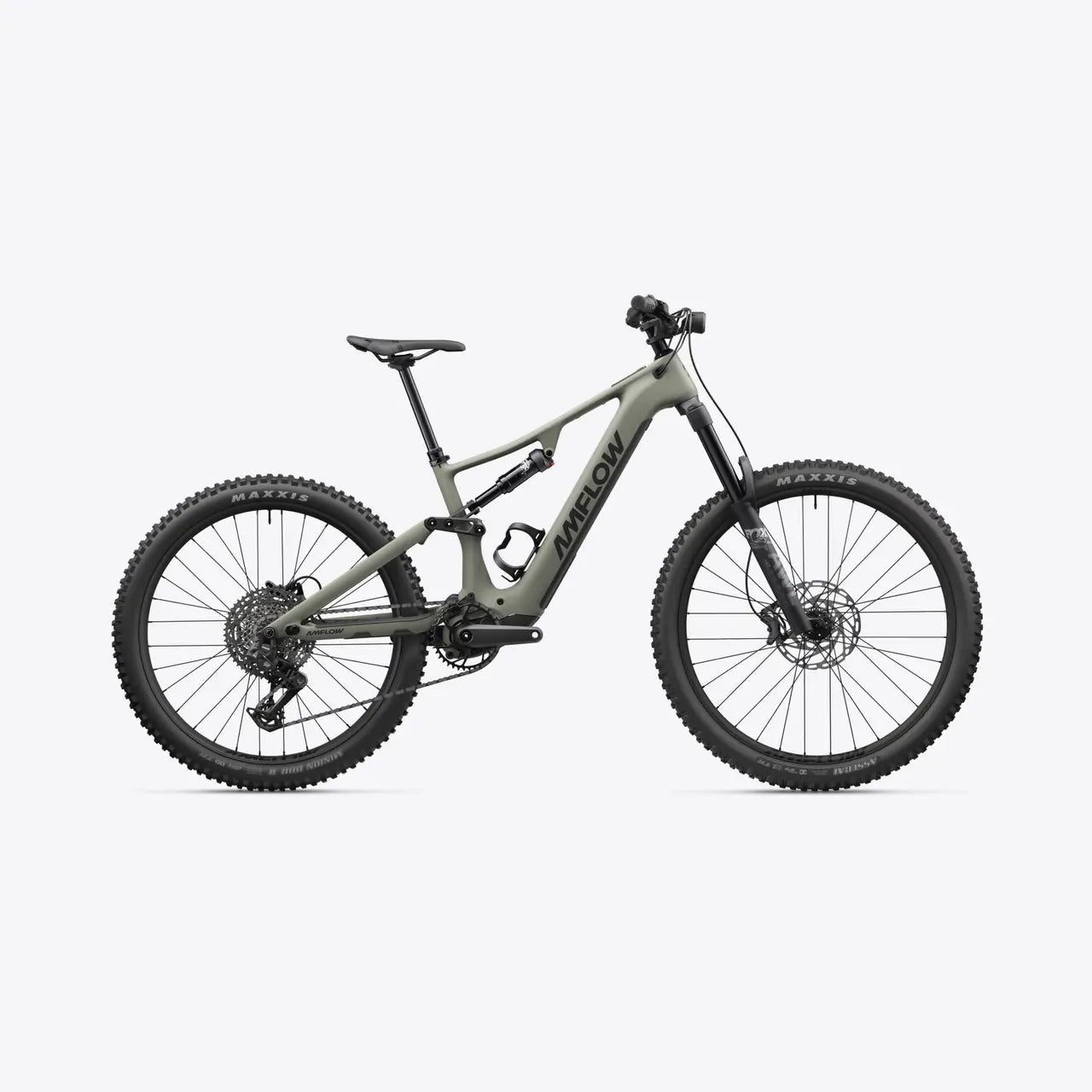

Amflow PR combines striking aesthetics with a full-carbon frame, delivering up to 150N·m of torque on configurations equipped with the Avinox M2S Drive Unit. With a swappable battery for extended rides, it gives you the freedom to ride farther and push your limits in style.

Potent Power, Quiet Performance

With 150N·m  torque and whisper-quiet 45dBA  operation, every ride feels smooth, powerful, and immersive.

Quick Swap, Easy Recharge

With an 800Wh or 600Wh removable battery, Amflow PR enables easy charging and quick swaps for worry-free long-distance riding.

Ultra-Light Carbon Fiber Frame

At around 2.9kg, it balances low weight with exceptional strength and rigidity, bringing greater stability and composure to every ride.

Flexible Adjustment, Effortless Control

With up to 40 geometry combinations, it fine-tunes head tube angle, bottom bracket height, and chainstay length to suit different trails and riding styles.

SmoothShift for Fast Gear Changes

Integrated with the SRAM electronic rear derailleur, the drive system enables the SmoothShift function, allowing you to shift while coasting.

Apple Find My Tracking

Amflow PR leverages Apple's vast network to help you track your bike's location and battery level anytime in the Apple Find My app.

Frame Amflow PR Carbon Frame
Moss Green
40 adjustable geometry configurations
Compatible with 27.5” and 29” rear wheels
E-Bike System Avinox M2 Drive Unit: Nominal 110Nm, peak 125N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Removable Battery: 800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Charger: 4A / 168W
Rear Shock FOX Float Rhythm
Custom tune, LSR adjustment, 210×55mm air shock
Fork FOX AWL HD Sport
160mm travel, RAIL 2.0 damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
Drivetrain Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1270 Eagle Transmission Cassette 10–52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank (M/L: 155mm, XL/XXL: 160mm)
Brakes Tektro TKD173 Hydraulic Disc Brake, 4-piston calipers, Amflow custom
Tektro Sensor Rotor (203mm, 2.3mm)
Wheels Amflow XMA-30 Mullet Version
Front Rim: Alloy, 29”, 30mm inner width, 32H, tubeless ready
Rear Rim: Alloy, 27.5”, 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG
Tires Front: Maxxis Assegai, 29×2.50 WT 3C MaxxGrip/EXO+/TR
Rear: Maxxis DHR II, 27.5×2.50 M327RU New MaxxTerra/DD/TR
Handlebar Amflow Enduro Alloy Handlebar
40mm Rise, 800mm Width, 35mm Diameter
5-degree upsweep, 9-degree backsweep
Grips Amflow Enduro Grip 2 Lock-on Grips
Stem Amflow Mountain Bike Split Stem
Length: 35mm
Clamping Diameter: 35mm
Saddle Amflow Mountain Saddle
Dropper Post Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20mm)
M Frame: 190mm
L/XL Frame: 210mm
XXL Frame: 230mm
Accessories Avinox Front Light
Amflow Bottle Cage
Three Geometry Adjustment Systems (0.5° IP Headset Cups, Chainstay Flip-Chip)
Removable Battery Keys × 2
5/10mm Dropper Post Travel Reducing Spacer
Quick Start Guide
Rear Light
Torque Wrench
Clear Frame Protection Film
Shock Pump
