An SUV e-bike built for multiple scenarios, Amflow TL Carbon brings agility on trails, smoothness in the city, and stability to loaded touring.

Full Suspension for All-Terrain Riding

A 2.9kg full-carbon frame keeps the bike exceptionally agile and durable, bringing the complete bike weight down to just 22.6kg

Full Suspension Co-Developed With FOX

With 120mm of front travel and 105mm of rear travel, the full suspension system absorbs bumps in the city, stabilizes cargo on loaded rides, and stays supple over roots and rocks while holding strong on bigger hits.

Both front and rear wheels can be switched from 27.5-inch to 29-inch [7] to match different terrain needs.

FOX AWL and FLOAT suspension are optimized for the Amflow TL platform, delivering confident handling, comfort, and control across a wide range of terrain.

Ergonomic Design for Long-Ride Comfort

Outstanding geometry and anti-squat performance make every stroke count, keeping you efficient on long rides and in control on descents.

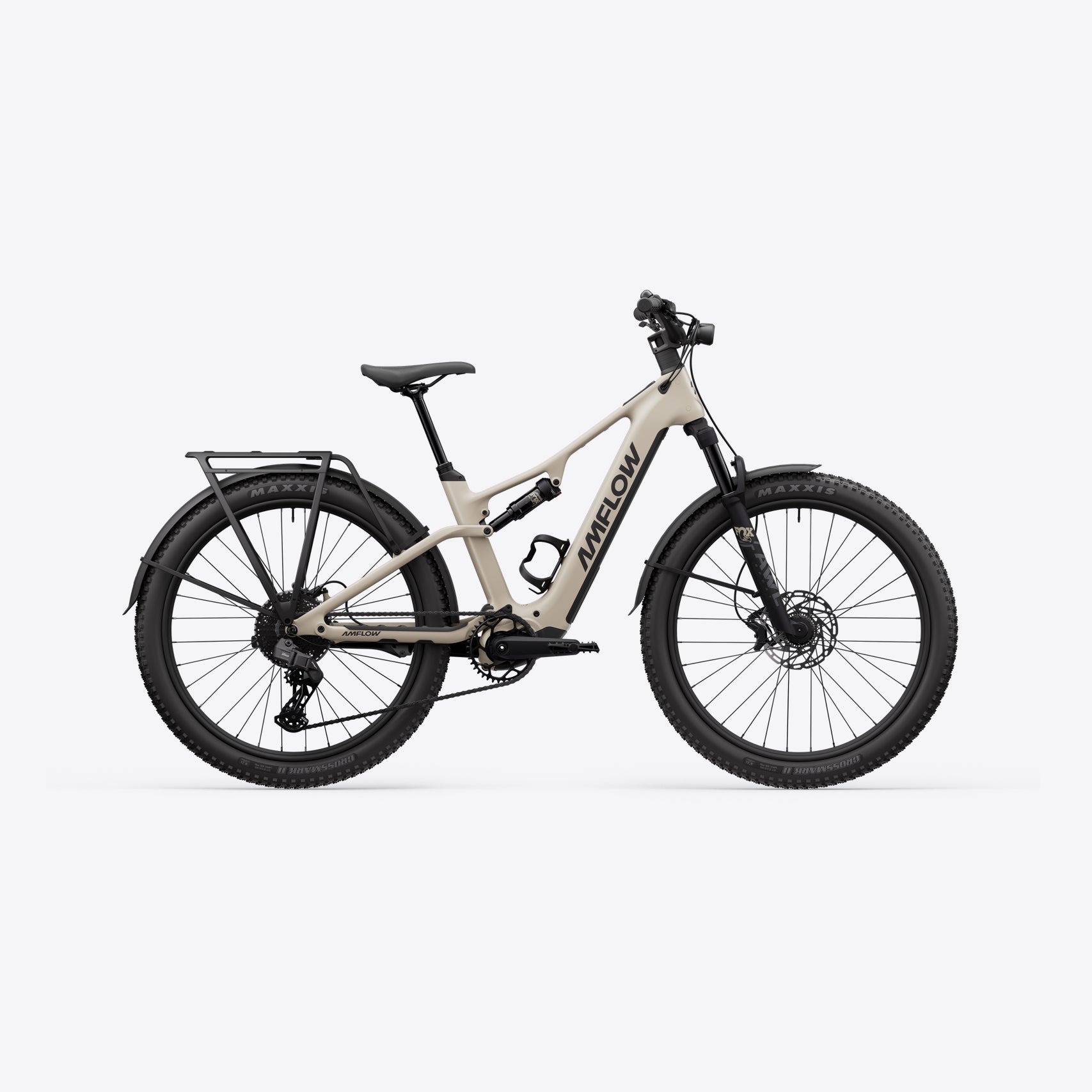

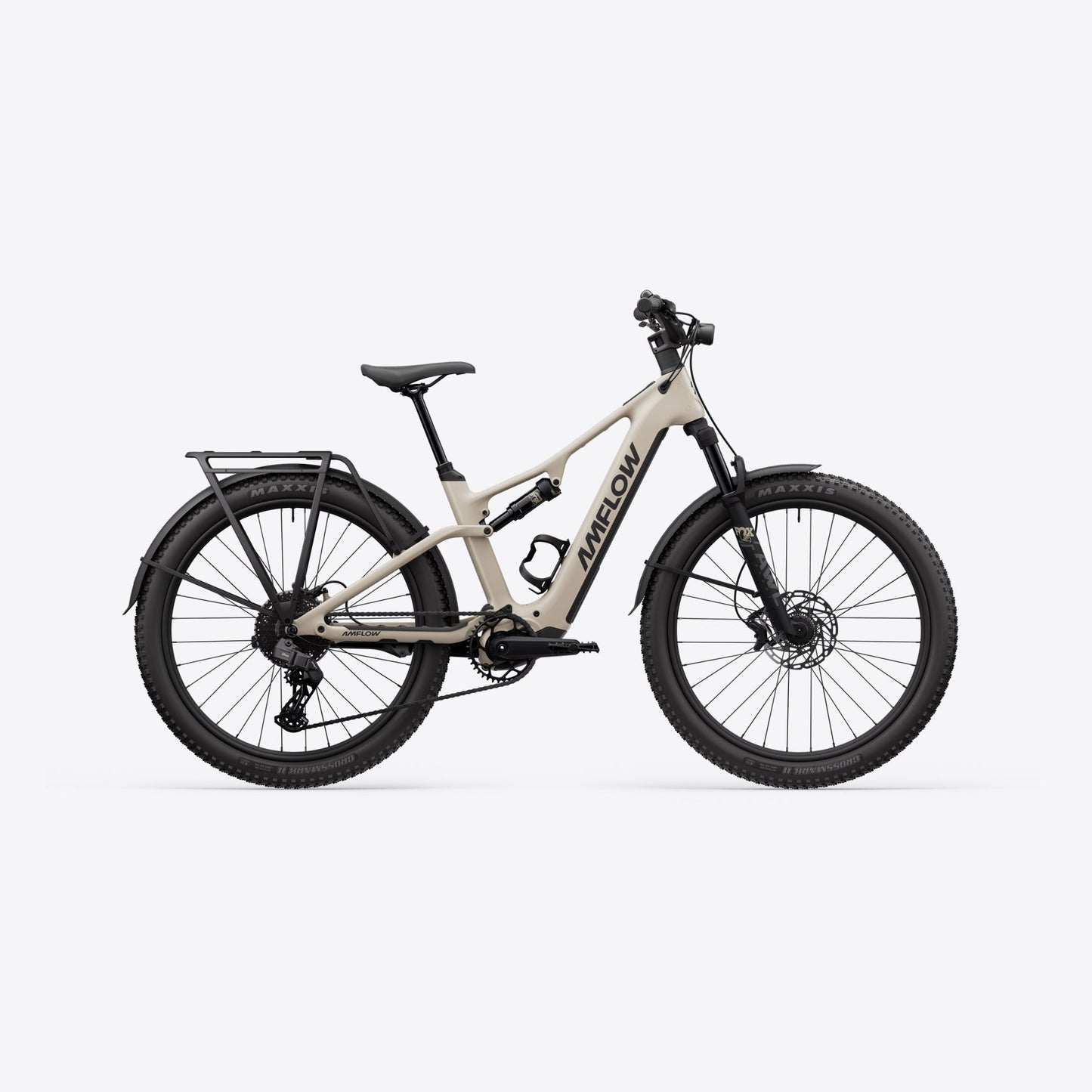

Amflow TL Carbon

Frame

Amflow TL Carbon Frame
Silica Beige
Full Suspension, Removable Battery, Compatible With 27.5″ and 29″ Front and Rear Wheels
Compatible With Front and Rear Mudguards
Compatible With Rear Rack and Front Rack
Compatible With Bike Trailers (Requires Trailer Thru-Axle)

Drive System

Avinox M2 Drive Unit: Nominal 110N·m, Peak 125N·m
Screen: Avinox DPC100, 2-inch OLED Control Display
Battery: Avinox RS800 Battery (Removable)
Wireless Controllers: Avinox Wireless Controller × 2 (One on each side of the handlebar)
Charger: Avinox 4A Charger, 168W Output

Rear Shock

FOX FLOAT Rhythm, LSR adjustment, Amflow TL tuned, 190×45mm

Fork

FOX AWL Sport, 120mm, RAIL 2.0 damper, LSR adjustment, 15×110mm Kabolt, 44mm offset

Drivetrain

Rear Derailleur: TRP E.A.S.I. RD-T7010E-L, 10/11-Speed, Electronic Rear Derailleur
Cassette: CS-M5243, 10-Speed, 11-43T
Chainring: Avinox Direct Mount Chainring (38T)
Chain: Avinox eGlide T Chain (10S/11S, 118 Links)
Crankset: Avinox SL Crankset (S/M: 155mm; L/XL: 160mm)

Brakes

Tektro TKD173 Hydraulic Disc Brakes, 4-Piston Caliper, Customized for Amflow
Tektro TR180-61E, Ø180mm, 2.3mm thickness, with integrated tonewheel for Avinox

Wheels

Front Wheel:
Amflow HTA-25 Front Wheel (27.5″)
Tires: Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI
Rim: Alloy, 27.5″, 25mm Inner Width, 32H
Hub: Alloy, 15×110mm Thru-Axle, 32H, 6-bolt

Rear Wheel:
Amflow HTA-25 Rear Wheel (27.5″)
Tires: Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI
Rim: Alloy, 27.5″, 25mm Inner Width, 32H
Hub: Alloy, 12×148mm Thru-Axle, 32H, 6-bolt, 6 Pawls, HG Freehub

Tires

Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI

Handlebar

Amflow Touring Handlebar
S/M Size Frame: 720mm Width, 35mm Diameter, 93mm Rise
L/XL Size Frame: 740mm Width, 35mm Diameter, 93mm Rise

Grips

Amflow Enduro Grip 2

Stem

Amflow Touring Bike Split Stem (Clamping Diameter: 35mm, Length: 35mm, Angle: 0°)

Saddle

Amflow Touring Saddle

Dropper Post

Amflow TA Dropper Post, 31.6mm (Adjustable Travel: 0/-10/-20mm)
S/M Size Frame: 150mm
L/XL Size Frame: 170mm

Accessories

Avinox Front Light
Amflow Touring Rear Rack, Compatible With MIK HD Standard
Amflow Elite MTB Pedals
Amflow Bottle Cage
Front Mudguard, Rear Mudguard
Amflow Touring Kickstand (348mm)
Amflow Touring Bike Split Stem (Clamping Diameter: 35mm, Length: 35mm, Angle: 0°)
Sate-lite M8 Rear Light With Integrated Reflector
Dropper Post Travel Reducing Spacer
Two Keys for Removable Battery
Torque Wrench
