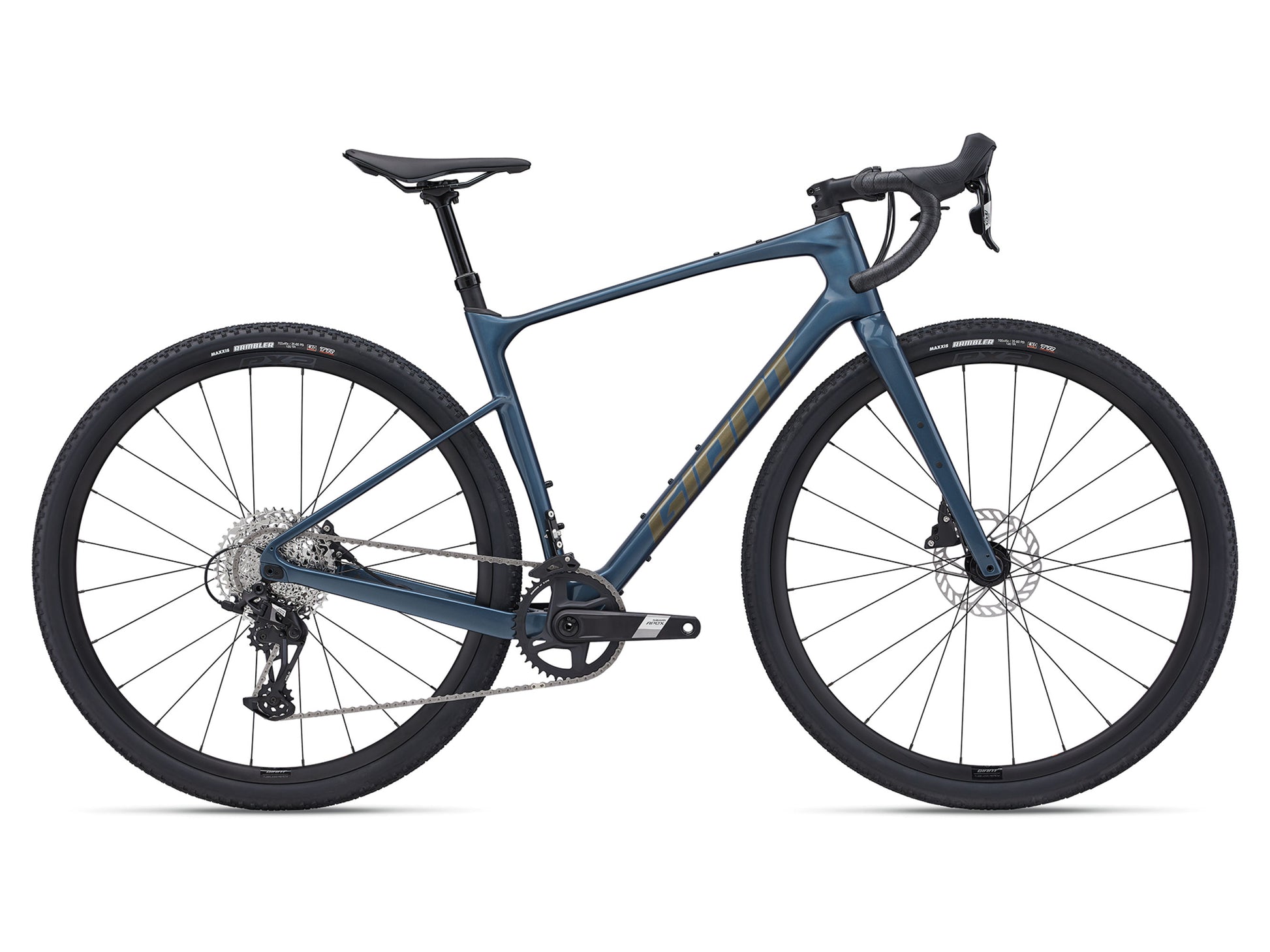

2024 Revolt Advanced 1

2024 Revolt Advanced 1

$3,499.00 AUD
$3,999.00 AUD $3,499.00 AUD
12% OFF Enquire now
Taxes included.

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Low stock: 1 left

Colour: Blue Ashes
Size

Full Description

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.
Key Performance Factors
Fast and light
Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance
Dropped seat stays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seat post work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can also choose the included D-Fuse seat post for maximum compliance.

Specifications

Sizes
XS, S, M, M/L, L, XL
Colours
Blue Ashes
Frame
Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
Fork
Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Shock
N/A
Handlebar
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips
Stratus Lite 3.0
Stem
Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost
Giant Contact Switch, dropper, 30.9mm XS:295mm, S:345mm, M:345mm, M/L:345mm, L:395mm, XL:395mm
Saddle
Giant Approach
Pedals
N/A
Shifters
SRAM Apex 1, 1x12
Front Derailleur
N/A
Rear Derailleur
SRAM Apex XPLR
Brakes
SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers
SRAM Apex hydraulic
Cassette
SRAM PG-1231 D1 XPLR, 12-speed, 11x44
Chain
SRAM Apex D1
Crankset
SRAM Apex D1 Wide DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket
SRAM DUB, press fit
Rims
Giant P-X2 Disc wheelset, alloy
Hubs
Giant alloy, 12mm thru-axle
Spokes
Sapim
Tires
Maxxis Rambler, 700x45c, tubeless
Extras
Giant 1x chain guide, tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max
tyre size in "short" flip chip position
