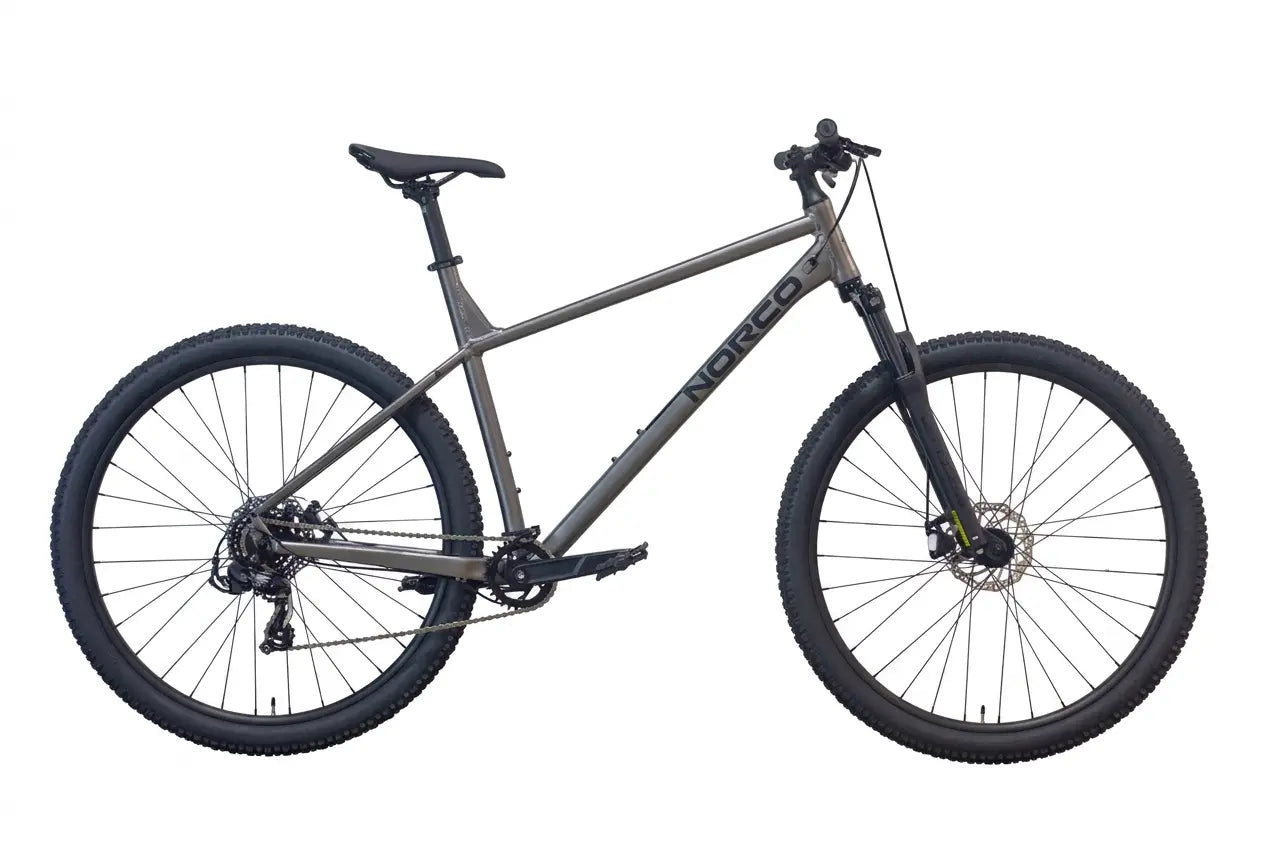

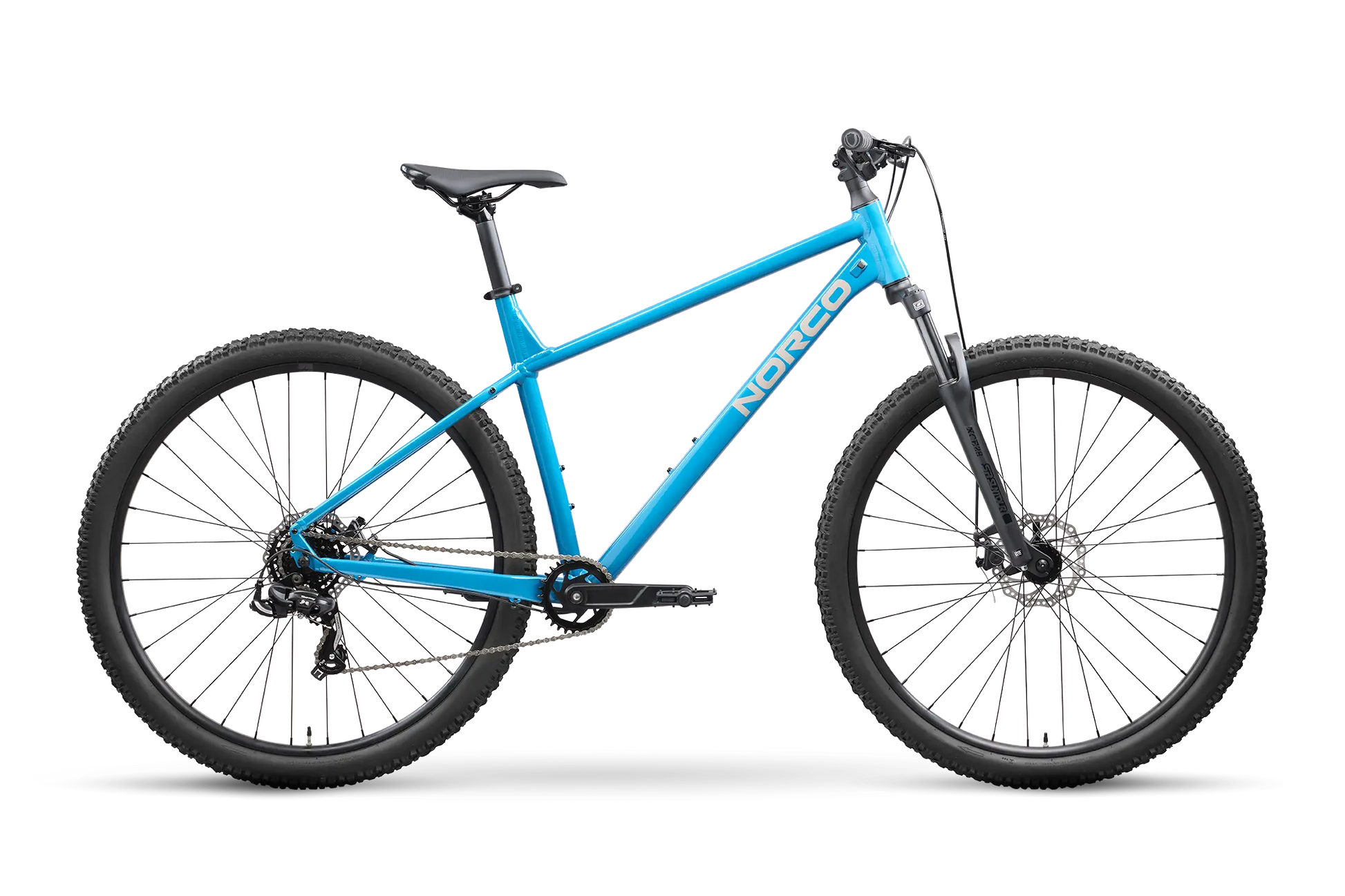

Storm 4

A staple in the lineup as a progressive off-road bike to take on your next adventure. An all-around bike for city or trails, to discover your favourite way to ride.

The Storm 4 opens up the world of off-road adventure

With a lightweight aluminum frame with custom tube shapes, a full breadth of frame sizes, rack and fender mounts, and dual water bottle mounts - it’s ready to go anywhere, with anyone.

Frame
Aluminum, Tig Welding, 10x135mm QR
Fork
SR Suntour XCE28 Coil, 100mm, 46mm offset, QR
Headset
Zero Stack, 1-1/8" Steer, ZS44/28.6 | ZS44/30 1 1/8"
Grips
Norco, 139mm Length
Handle Bar
Norco Aluminum, 740mm (S-M) 760mm (L-XXL), 20mm Rise
Stem
Alloy 40mm Length, 31.8mm Clamp
Seat Post
Alloy 31.6mm, 300mm (S), 400mm (M/L/XL/XXL) length
Seat Post Clamp
Norco Alloy QR Clamp, 34.9mm ID
Saddle
Norco XC, Steel Rail
Front Brake
C-Star, Resin pads, Mechanical Disc
Front Brake Rotor
C-Star, 160mm, 6-bolt
Rear Brake
C-Star, Resin pads, Mechanical Disc
Rear Brake Rotor
C-Star, 160mm, 6-bolt
Brake Levers
C-Start Alloy Levers, Reach adj
Shifter Rear
Shimano SL-M315-7R, 7sp
Rear Derailleur
Shimano RD-TY500, 7sp
Cassette
Shimano CS-HG210-7, 12-32T, 7sp
Chain
KMC Z7, 7sp
Crankset
Prowheel Alloy, 30T, 170mm (S-M), 175mm (L - XXL)
Bottom Bracket
Cartridge, ST 73mm, 113mm axle length
Pedals
Nylon Flat Pedal, Chromoly Axle
Front Hub
Formula DC-1420, 9x100mm QR, 32h, 6-bolt
Rear Hub
Formula DC-27A,10x135mm QR, HG, 32h, 6-bolt
