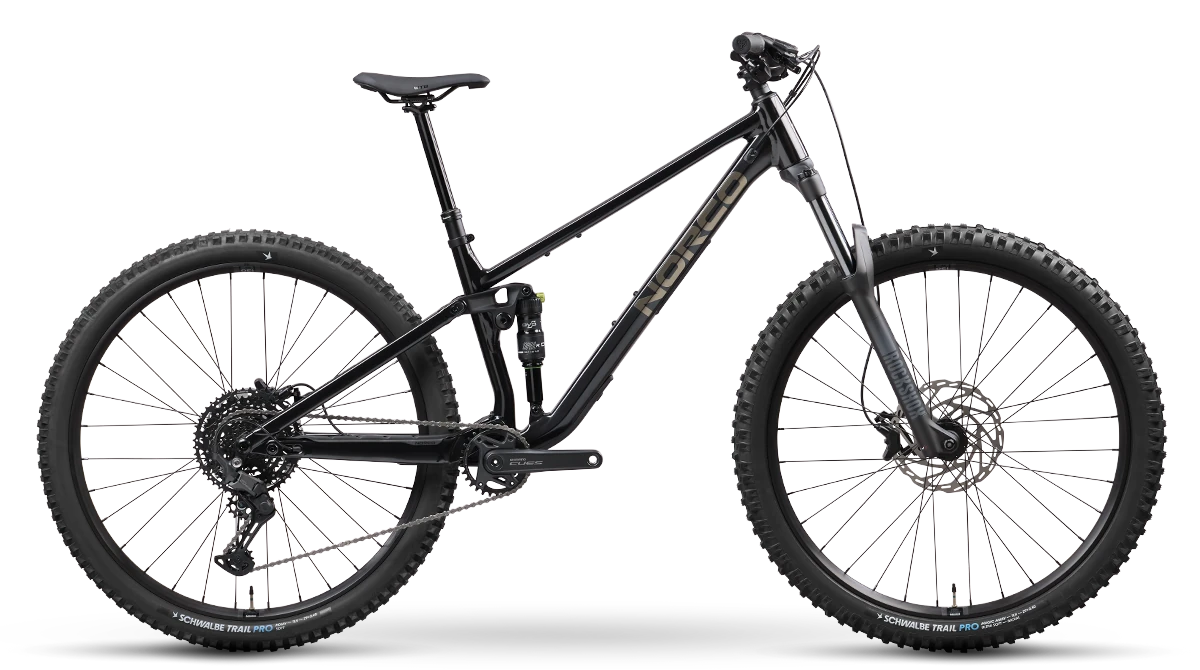

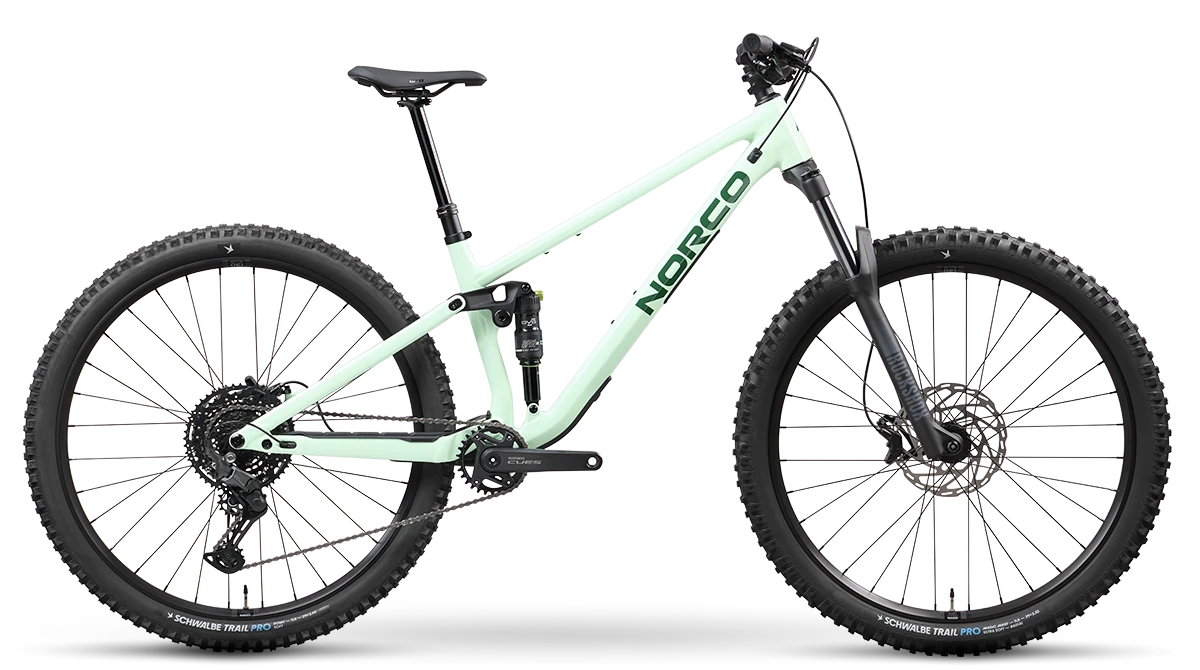

Fluid A3
Built on an award-winning reputation with even more capability and refinement. The same Fluid you love, with new technology and a lighter frame in a value-driven package that makes progression feel effortless from the get-go. Confidence, control, and composure for every stage of riding.

Made to Ride Better.
Top-tier design, performance-focused spec and thoughtfully integrated features across all models deliver beyond expectations. A full 6066 aluminum frame balances durability with weight savings, making it lighter than the previous generation without compromising strength.

Frameset
Frame
Aluminum Frame, 130mm Travel, UDH| R-Wheel Size Adj | Ride Aligned™
Fork
RockShox Recon RL 140mm, 44mm Offset
Rear Shock
DVO Opal, 210x50mm, Std eyelet
Drivetrain
Rear Shifter
Shimano CUES SL-U6000-10R, 10sp
Rear Derailleur
Shimano CUES RD-U6000, 10sp, GS
Crankset
Shimano CUES FC-U6000-1, 30T, CL55, 165mm(S1,S2) - 170mm(S3,S4,S5)
Bottom Bracket
Shimano, BSA 73mm
Cassette
Shimano CUES CS-LG300 10sp 11-48T
Chain
Shimano LG-500, 10sp
Brakes
Front Brake
Tektro HD-M535, 4 Piston , Resin Pads
Front Brake Rotor
Tektro TR203, 203mm, 2.3mm Thickness, 6-bolt
Rear Brake
Tektro HD-M535, 4 Piston , Resin Pads
Rear Brake Rotor
Tektro TR203, 180mm, 2.3mm Thickness, 6-bolt
Brake Levers
Tektro HD-M535
Components
Handlebar
Norco 6061 DB Alloy, 800mm, 25mm Rise(S1,S2) - 35mm Rise(S3,S4,S5)
Stem
Norco 6061, 40mm Length, 35mm Clamp
Seatpost
TranzX YSI34QL , 31.6mm, 125 (S1) -150mm (S2) -170mm (S3) -200mm (S4,S5)
Headset
Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
Saddle
WTB Solano Med, 142x240 mm, Steel Rails
Grips
WTB Wavelength, 140mm Length
Seatpost Clamp
Norco Alloy Nutted Clamp, 34.9mm ID
Wheels
Front Hub
Formula DC-511, 15x110mm Boost, 32h, 6-bolt
Rear Hub
Formula DC-3248,12x148mm Boost, HG, 32h, 6-bolt
Rims
WTB ST i30 TCS 2.0 ,30 mm, 32H, 29"
Front Tire
Schwalbe Magic Mary, Trail casing, Ultra Soft , Radial, 29x2.5"
Rear Tire
Schwalbe Romy, Trail casing, Soft, Radial, 29x2.4"
Weight
Weight
16.9 kg (37.2 lbs)
Weight Size
S3
