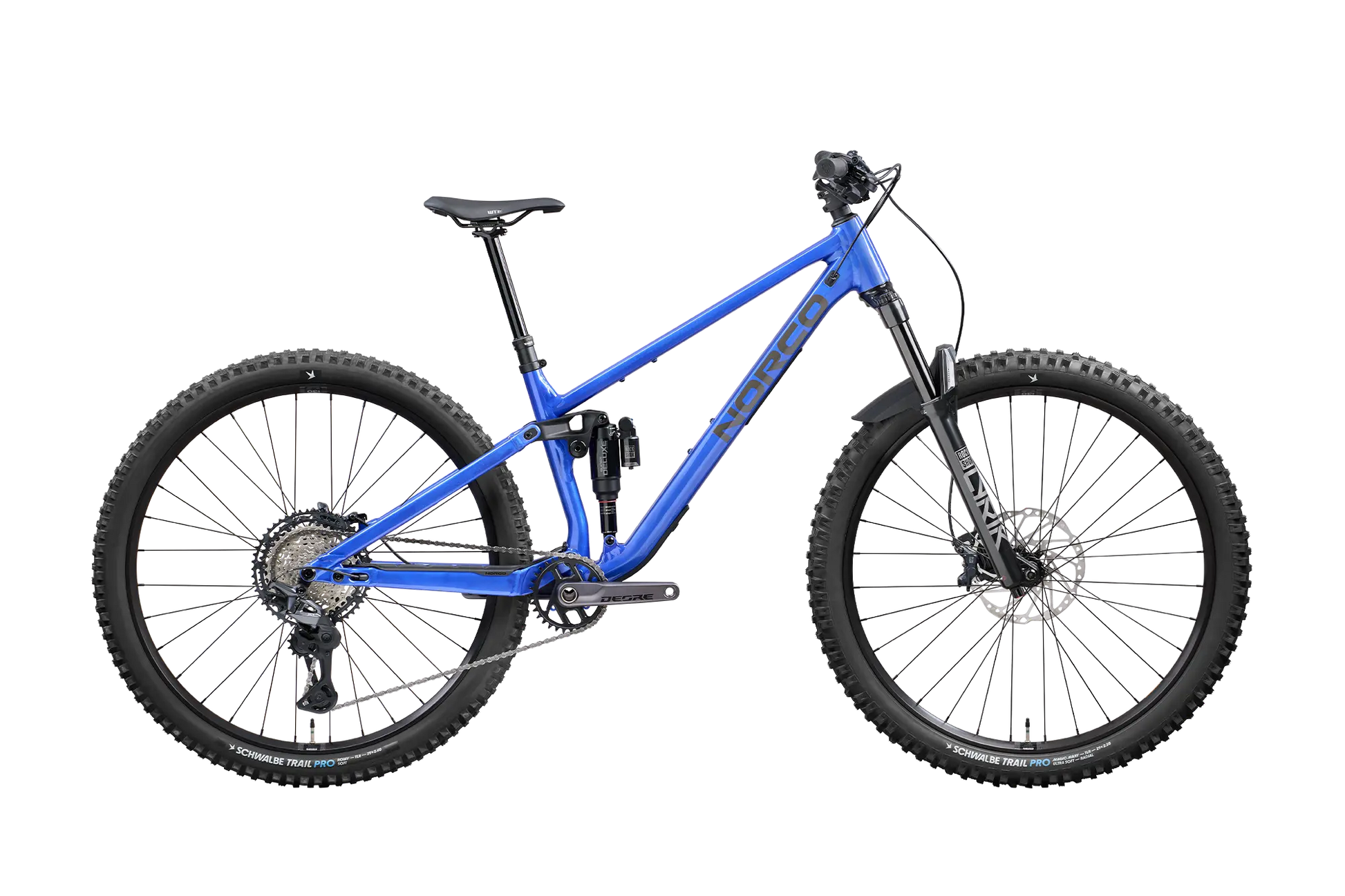

Fluid A1

Built on an award-winning reputation with even more capability and refinement. The same Fluid you love, with new technology and a lighter frame in a value-driven package that makes progression feel effortless from the get-go. Confidence, control, and composure for every stage of riding.

Made to Ride Better.

Top-tier design, performance-focused spec and thoughtfully integrated features across all models deliver beyond expectations. A full 6066 aluminum frame balances durability with weight savings, making it lighter than the previous generation without compromising strength.

Frame
Aluminum Frame, 130mm Travel, UDH| R-Wheel Size Adj | Ride Aligned™
Fork
RockShox Lyrik Select +, 140mm Travel, 44mm offset, Fender Included
Rear Shock
RockShox Super Deluxe Select RT, 210x50mm Std eyelet
Headset
Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
Grips
WTB Wavelength, 140mm Length
Handle Bar
Norco 6061 DB Alloy, 800mm, 25mm Rise(S1,S2) - 35mm Rise(S3,S4,S5)
Stem
Norco 6061, 40mm Length, 35mm Clamp
Seat Post
TranzX YSI160 RAD+, 31.6mm, 125 (S1) -150mm (S2) -170mm (S3) -200mm (S4,S5)
Seat Post Clamp
Norco Alloy Nutted Clamp, 34.9mm ID
Saddle
WTB Solano Med, 142x240 mm, Steel Rails
Front Brake
Shimano SLX BR-M7120 4-P, Metallic pads
Front Brake Rotor
Shimano SM-RT64, 203mm, C-lock
Rear Brake
Shimano SLX BR-M7120 4-P, Metallic pads
Rear Brake Rotor
Shimano RT-64, 180mm, C-lock
Brake Levers
Shimano SLX BL-M7100
Shifter Rear
Shimano Deore XT SL-M8210-IR, 12sp
Rear Derailleur
Shimano Deore XT RD-M8200, SGS, 12sp
Cassette
Shimano Deore XT CS-M8200-12, 10-51T, 12sp
Chain
Shimano Deore XT CN-M8100, 12sp
Crankset
Shimano Deore FC-M6200, 30T, 55CL, 165mm(S1,S2) - 170mm(S3,S4,S5)
Bottom Bracket
Shimano, BSA 73mm
Front Hub
Shimano HB-TC500-15-B,15x110mm Boost, 32H, C-lock
Rear Hub
Shimano FH-TC600-MS-B, 12x148mm Boost, Micro Spline, 32H, C-lock
Rims WTB KOM
Team i30 TCS 2.0, 30mm, 32H, 29"
Front Tire
Schwalbe Magic Mary, Trail casing, Ultra Soft , Radial, 29x2.5"
Rear Tire
Schwalbe Roamy, Trail casing, Soft, Radial, 29x2.4"
