Design features

• Features a lower bottom bracket height and more generous standover clearance than previous models.
• A specially tuned linkage gives young riders the same level of control and suspension performance as our adult bikes.
• Smaller riders require less spring force in their suspension components and dropper posts. Less spring force needs less damping, so we’ve spec’d youth-specific tunes on all Fluid Youth bikes so the suspension and droppers move properly under a rider below 90 pounds.

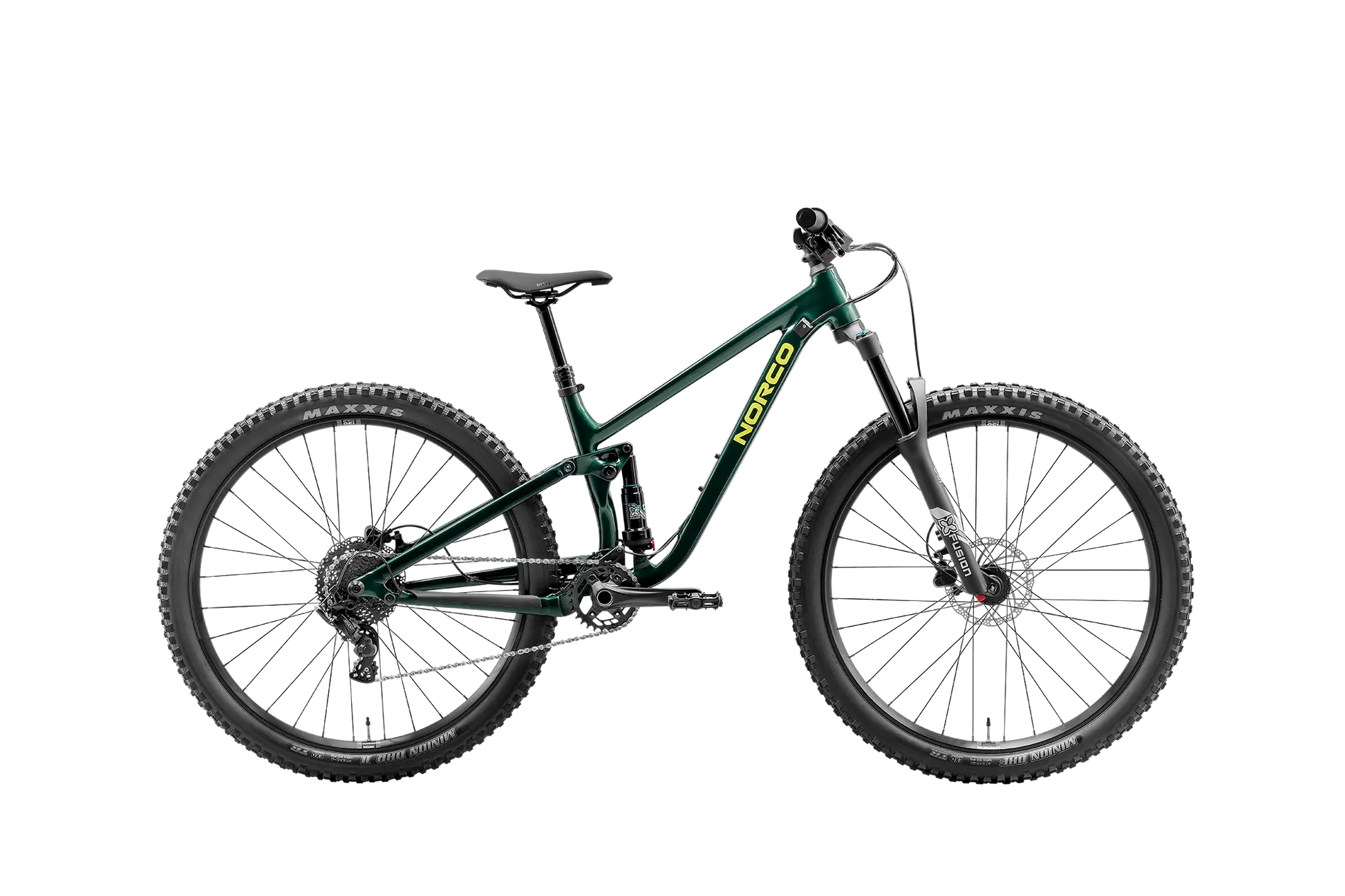

Fluid FS Youth 27.5
The Fluid FS Youth’s progressive design provides the features and ride quality of our best adult bikes in a pint-sized package. Standover has been maximized, suspension tunes optimized, and frame geometry honed to bring the distinct Norco ride to every model.

Show them everything you love about riding. 
Progressive frame design for a premium, next-level Trail ride.

Frameset
Frame
6061 Alloy, 120mm Travel, UDH, Hangerless Interface Compatible
Fork
X-Fusion RC32 Air, 130mm, 46mm Offset, 15x110mm Boost
Rear Shock
X-Fusion 02 Pro R, 190x42.5mm Standard
Drivetrain
Rear Shifter
microSHIFT Advent, 9spd
Rear Derailleur
microSHIFT Advent, 9spd, Short Cage Clutch
Crankset
Prowheel Junior Alloy, 30T, 155mm
Bottom Bracket
Prowheel Cartridge BB
Cassette
microSHIFT Advent, 11-38T, 9spd
Chain
KMC X9, 9spd
Brakes
Front Brake
Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade
Front Brake Rotor
Tektro TR160-22, 160mm, 6-bolt
Rear Brake
Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade
Rear Brake Rotor
Tektro TR160-22, 160mm, 6-bolt
Brake Levers
Tektro HD-J285
Components
Handlebar
Norco 6061 Alloy DB , 750mm, 20mm rise
Stem
Norco 6061, 35mm Length, 31.8mm Clamp
Seatpost
TranzX YSP18BKL, 31.6mm, 100mm, Kids Tune
Headset
Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40)
Saddle
WTB Solano Med, 142x240 mm, Steel Rails
Grips
Norco Youth Lockon, 115mm Length
Seatpost
Clamp Norco Alloy Nutted Clamp, 34.9mm ID
Wheels
Front Hub
Formula DC-511, 15x110mm Boost, 32h, 6-bolt
Rear Hub
Formula DC-3248,12x148mm Boost, HG, 32h, 6-bolt
Rims
WTB ST, 27mm ID, 32H
Front Tire
Maxxis Minion DHF, EXO, 27.5"x2.5", Folding
Rear Tire
Maxxis Minion DHR II, EXO, 27.5" x 2.4", Folding
