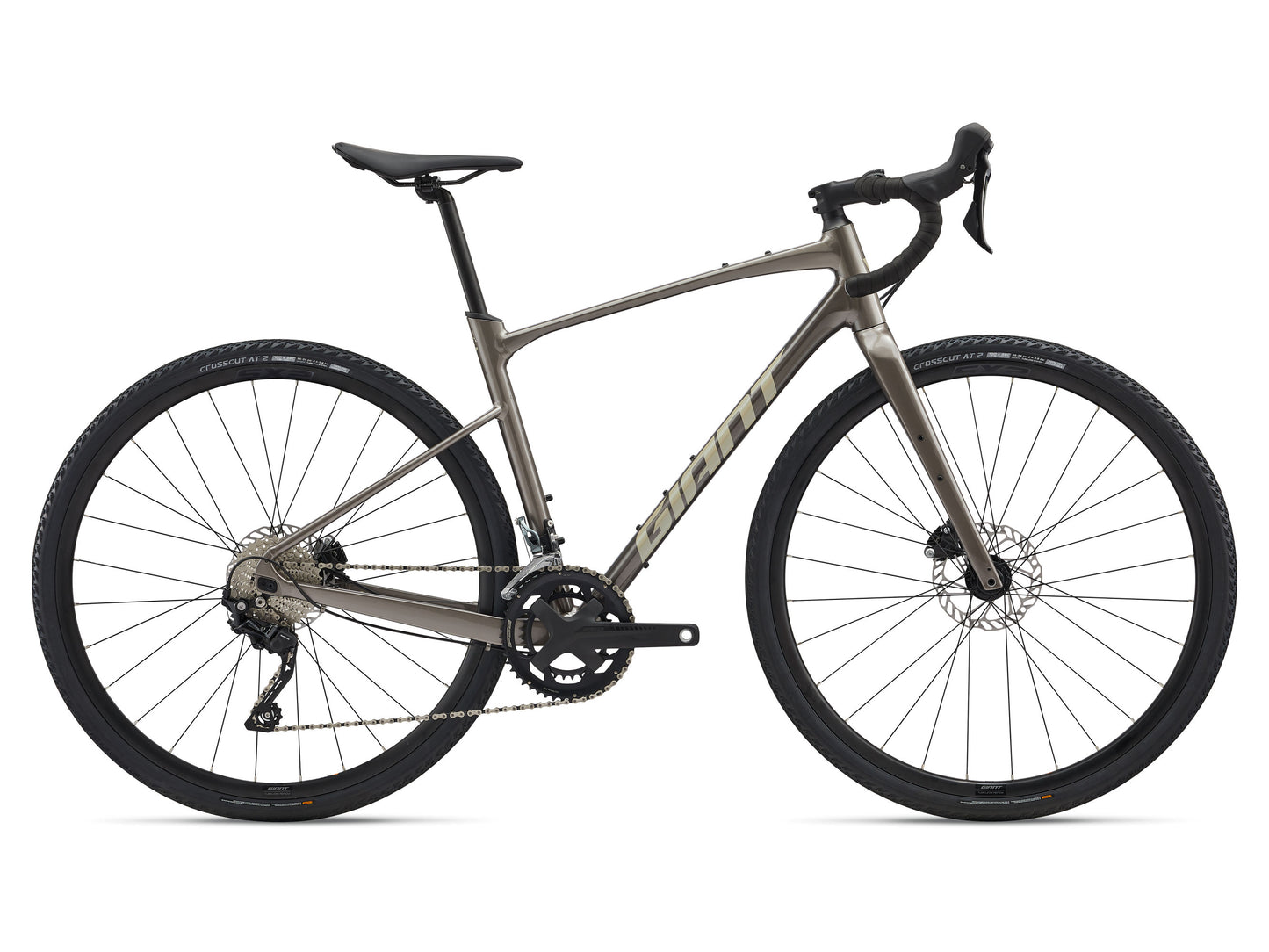

2025 Revolt 1

2025 Revolt 1

$2,499.00 AUD
$2,499.00 AUD
Liquid error (snippets/price line 117): divided by 0% OFF Enquire now
Taxes included.

Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.

Contact Us

Colour: Metal
Size

Full Description

Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.
Key Performance Factors
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specifications

Sizes
XS, S, M, M/L, L, XL
Colours
Metal
Frame
ALUXX-Grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout
Fork
Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar
Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips
Cork tape with gel
Stem
Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost
Giant D-Fuse, alloy, 14mm offset
Saddle
Giant Approach
Pedals
N/A
Shifters
Shimano GRX RX-400, 2x10
Front Derailleur
Shimano Tiagra
Rear Derailleur
Shimano GRX RX-400
Brakes
Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers
Shimano GRX RX-400 hydraulic
Cassette
Shimano HG500, 11x34
Chain
KMC X10
Crankset
FSA Omega Adventure, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket
FSA Mega EXO
Rims
Giant S-X2 Disc wheelset, alloy
Hubs
Giant alloy, 12mm thru-axle
Spokes
Stainless
Tires
Giant CrossCut AT 2, 700x38c, tubeless
Extras
Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
Max Tire Clearance
53mm
