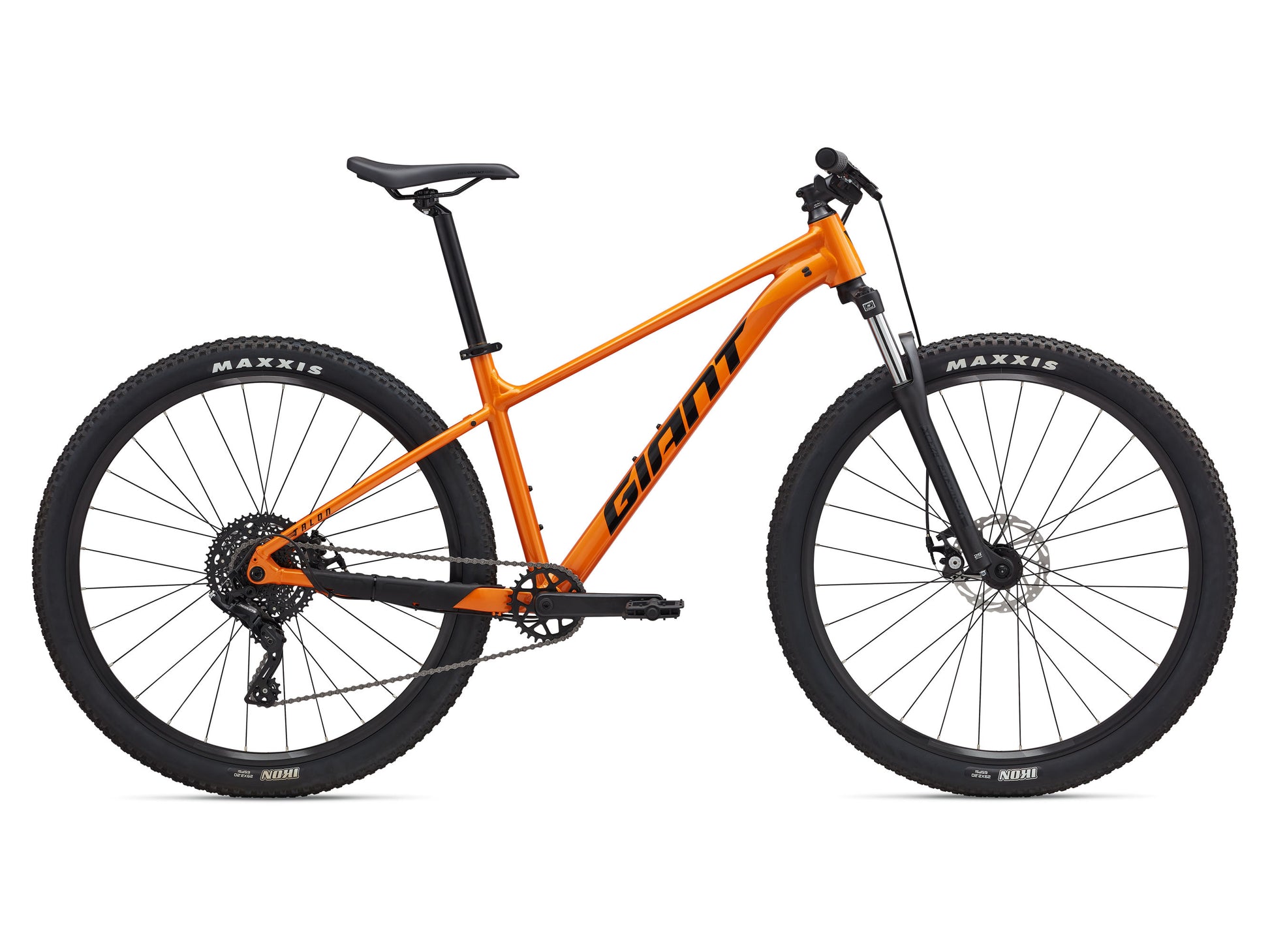

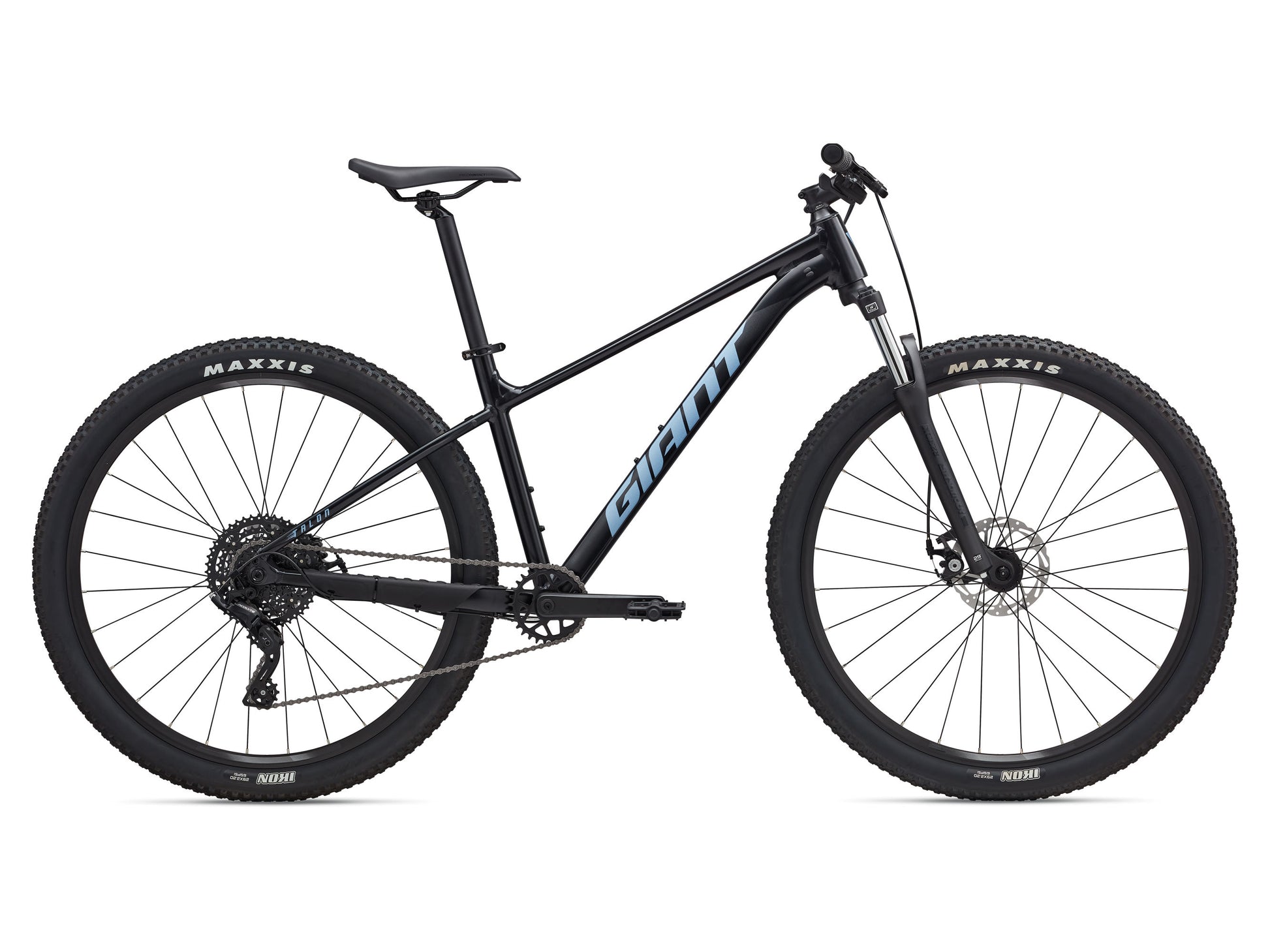

2025 Talon 4
2025 Talon 4
The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminium hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models
Low stock: 1 left
Full Description
Full Description
The mountain bike experience starts here. With a redesigned frame that’s now lighter and more durable, along with a smooth-riding suspension fork, thru-axle hubs*, and a 1x drivetrain*, this aluminium hardtail is everything an aspiring MTB rider needs to evolve and advance. *on select models
Key Performance Factors
Modern MTB Design
Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models
Off-Road Control
New geometry is optimised for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size and model. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size and model. All models have clearance for high-volume tyres (up to 2.4-inch) for traction and grip on technical terrain.
Light and Durable
All-new ALUXX aluminium frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
Specifications
Specifications
Sizes
27.5: XS, S, 29: S, M, L, XL
Colours
Radiant Orange, Black
Frame
ALUXX-grade aluminium, disc
Fork
SR Suntour XCE 28, coil spring, QR, steel steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (29), L: 100mm travel (29) XL: 100mm travel (29)
Shock
N/A
Handlebar
Giant Connect Trail, 31.8mm
Grips
Giant Sole-O
Stem
Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29)
Seatpost
Giant Sport, 30.9mm
Saddle
Giant ErgoContact Trail
Pedals
MTB caged
Shifters
microSHIFT Acolyte, 1x8
Front Derailleur
N/A
Rear Derailleur
microSHIFT Acolyte, M5185M w/clutch
Brakes
TKB-172, mechanical [F]160mm, [R]160mm rotors
Brake Levers
Alloy
Cassette
microSHIFT H083, 12x46
Chain
KMC 8.1
Crankset
Prowheel Forged, 32t XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29)
Bottom Bracket
Cartridge
Rims
Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner
width
Hubs
Alloy, sealed
Spokes
Stainless, 14g
Tires
Maxxis Ikon 27.5" or 29x2.2", wire bead
Extras
2.4" max tyre size, 32t max chainring size
